1" Bore H style Split Tapered Steel Bushing mount sheaves ID :1" (H1"-HX1- QH 1")

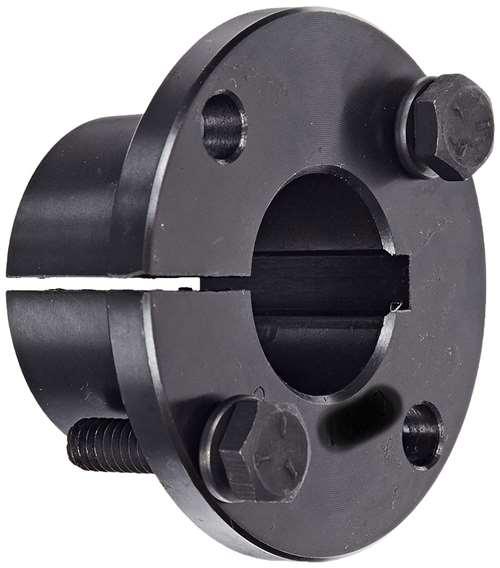

 H Style 1" Bore Split Taper Bushing
  ✔️ Steel - Keyway Mount - Fits Sheaves & Sprockets

This H-series split taper bushing has a 1" bore and is designed for mounting sheaves or sprockets onto shafts in high-torque power transmission systems. With its double-split steel design and built-in keyway, it provides a strong, slip-free grip and easy installation on various shaft types.

✅ Bore size: 1" inch
✅ Flange outer diameter: 2-1/2"
✅ Flange thickness: 1/4"
✅ Total length through bore: 1-1/4"
✅ Material: High-strength steel
✅ Bore type: Includes keyway
✅ Keyway dimensions: 1/4" wide x 1/8" deep
✅ Bolt hole diameter: 1/4"
✅ Quantity: 1 bushing

💡 Why are split taper bushings ideal for mounting power transmission components?
Split taper bushings create a tight fit by clamping around the shaft when tightened, improving torque handling and reducing slippage. Their split design allows for easy removal and reinstallation, making them perfect for high-load rotating equipment.

Lock your sheaves and sprockets in place with confidence - grab this rugged H-style bushing and keep your system driving forward!
