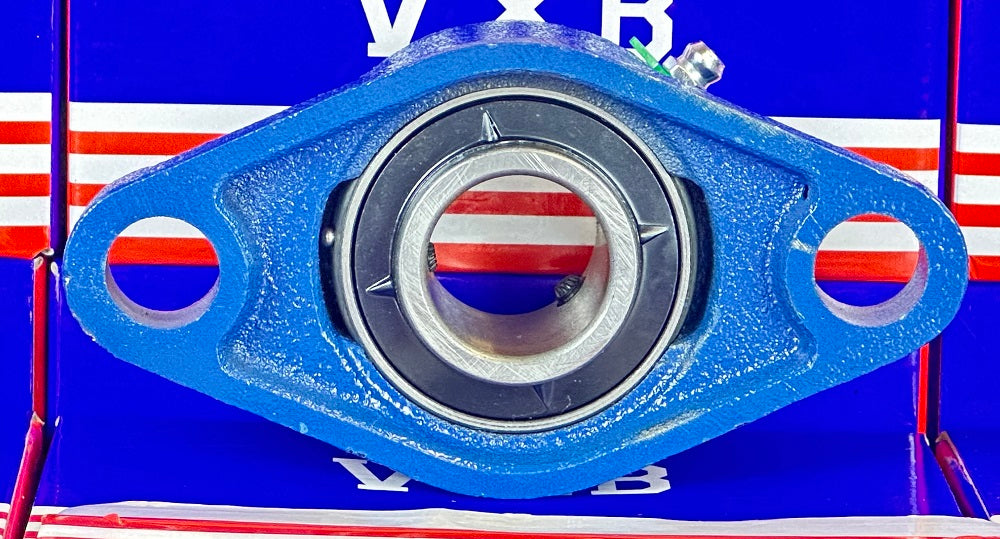

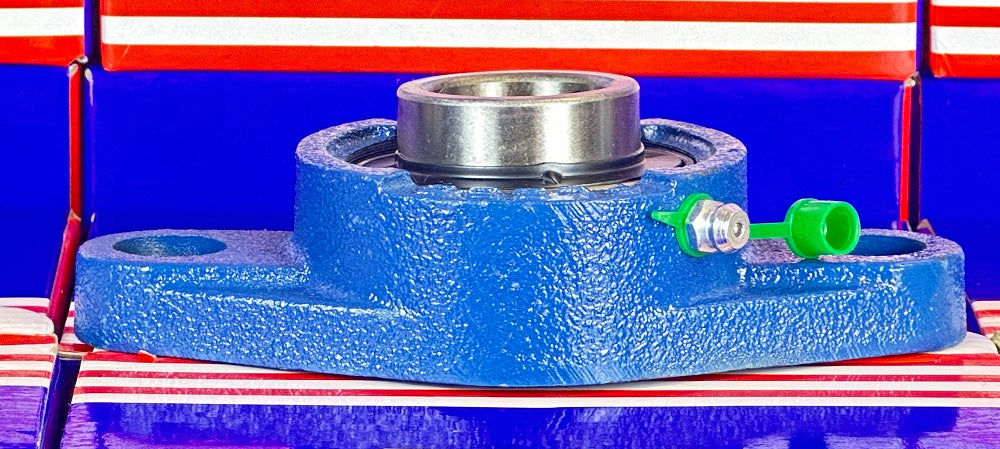

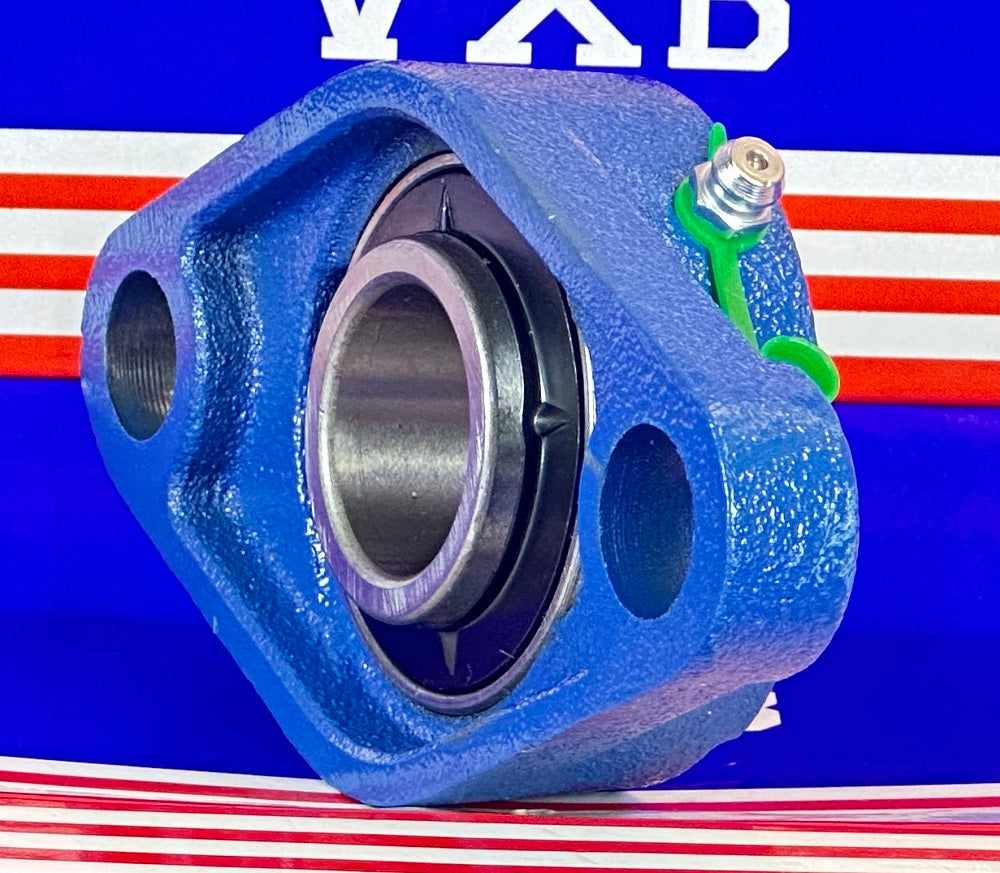

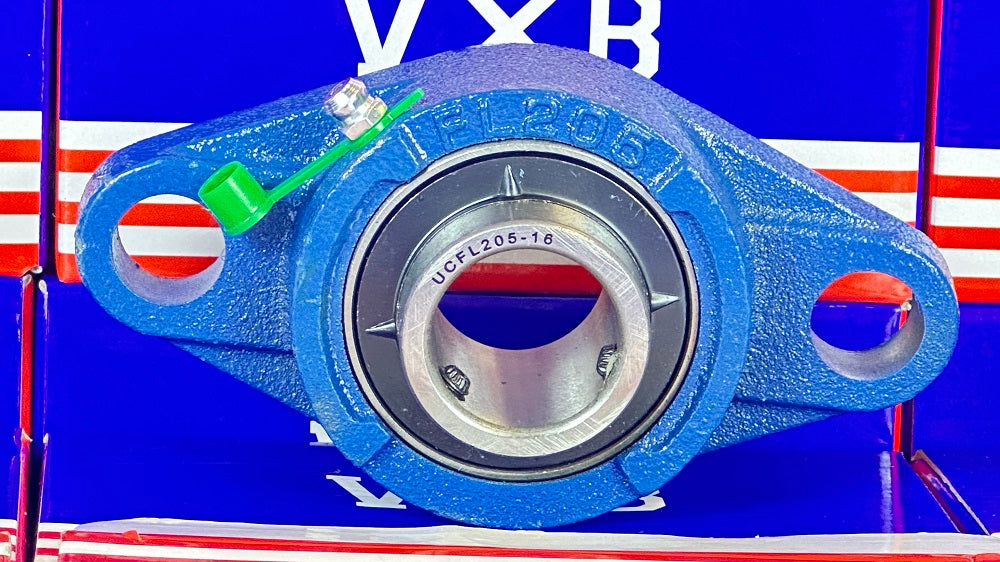

1" ID - UCFL205-16 + 2-Bolt Flanged Cast Housing Mounted Bearing

UCFL205-16 Mounted Bearing
1" Inch Bore - Two-Bolt Flange Unit - VXB Bearings

The UCFL205-16 Mounted Bearing delivers reliable shaft support with a compact two-bolt design, perfect for a wide range of industrial applications.

✅ Item: UCFL205-16 Bearing
✅ Type: Two-Bolt Flange Mounted Bearing
✅ Inner Diameter (ID): 1" Inch
✅ Bolt Size: M16
✅ Basic Dynamic Load Rating (Cr): 14,000 N
✅ Basic Static Load Rating (Cor): 7,850 N
✅ Bearing Number: UC205-16
✅ Quantity: 1 Bearing
✅ Brand: VXB Bearing

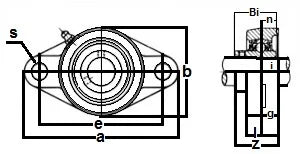

Dimensions (Inches):

• Overall Length (a): 5-1/8"

• Center-to-Center Bolt Distance (e): 3-57/64"

• Bolt Hole Diameter (i): 5/8"

• Slot Width (g): 1/2"

• Total Height (l): 1-1/16"

• Bolt Slot Thickness (s): 5/8"

• Base to Shaft Center (b): 2-11/16"

• Overall Width (z): 1-5/32"

• Bearing Width (Bi): 1-21/64"

• Mounting Hole Diameter (n): 9/16"

💡 What makes two-bolt flange bearings a smart choice?
Answer: Their compact size and easy alignment make them ideal for tight spaces where reliable shaft support is critical!
