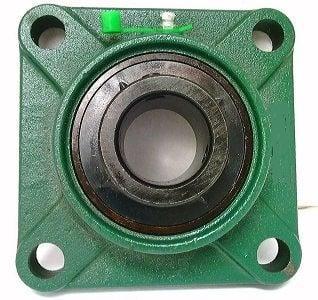

• 1" Bearing UCF205-16 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing
  • 1" Bearing UCF205-16 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing
1 2

VXB

1" Bearing UCF205-16 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

1" Bearing UCF205-16 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

$6.99 USD
$9.99 USD $6.99 USD
Sale Sold out
Shipping calculated at checkout.
UCF205-16 Black Oxide Plated InsertFour Bolt Flange Unit
Set Screw Type
1" inch Inner Diameter


UCF205-16 Black Oxide Plated Inser + tFour Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1" inch

  • UCF205-16 Black Oxide Plated Insert Bearing
  • Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 1" inch
  • Basic Load (Cr): 14 KN
  • Basic Load (Cor): 7.85 KN
  • Bearing No: UC205-16
  • Housing No: F205
  • Quantity: 1 Bearing

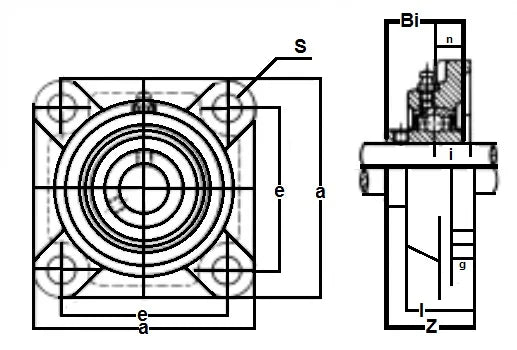

Dimensions (inches)
a e i g l s z Bi n
3-3/4" 2-3/4" 5/8" 9/16" 1-1/16" 15/32" 1-13/32" 1.34" 9/16"
