1" ID - UCF-205-16 + Square Flanged Cast Housing Mounted Bearing

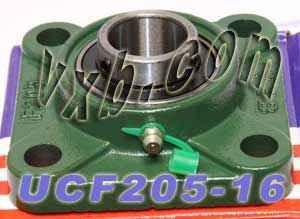

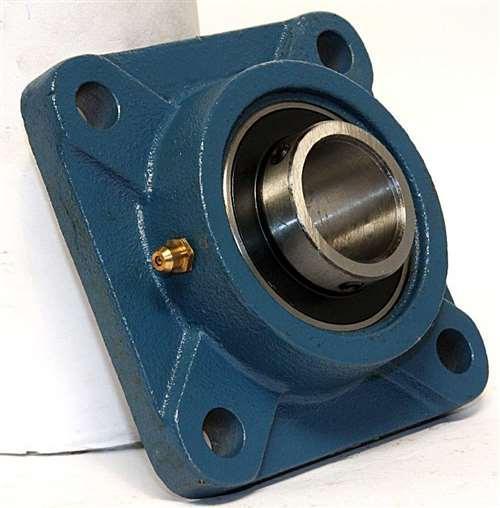

UCF-205-16 Four Bolt Flange Unit
Set Screw Type - 1" Inch Inner Diameter - VXB Bearings

A strong, reliable solution for shaft mounting, the UCF-205-16 Four Bolt Flange Unit ensures stability and ease of installation in heavy-duty applications.

✅ Item: UCF-205-16 Ball Bearing
✅ Type: Four Bolt Flange Mounted Bearing
✅ Inner Diameter (ID): 1" Inch
✅ Bolt Size: 3/8" Inch
✅ Shaft Diameter: 1" Inch
✅ Basic Dynamic Load Rating (Cr): 14 KN
✅ Basic Static Load Rating (Cor): 7.85 KN
✅ Bearing Number: UC205-16
✅ Housing Number: F205
✅ Quantity: 1 Bearing
✅ Brand: VXB Bearing

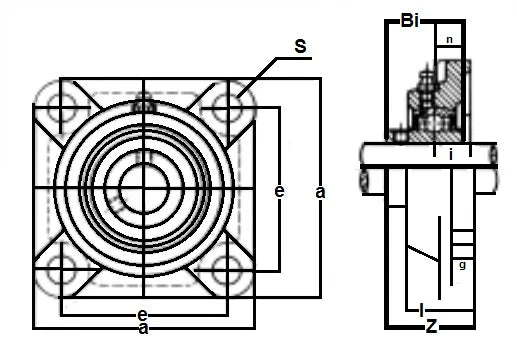

Dimensions (Inches):

• Center-to-Center Bolt Distance (a): 3-3/4"

• Bolt Hole Distance (e): 2-3/4"

• Bolt Hole Size (i): 5/8"

• Slot Width (g): 9/16"

• Total Height (l): 1-1/16"

• Bolt Slot Thickness (s): 15/32"

• Overall Width (z): 1-13/32"

• Bearing Width (Bi): 1.34"

• Bolt Hole Diameter (n): 9/16"

💡 Why choose a four-bolt flange bearing?
Answer: Four-bolt mounting offers superior holding strength and load distribution, making it ideal for high-load and vibration-prone applications!
