1-9/16" Bearing UCF208-25 Black Oxide Plated Insert Bearing + Square Flanged Housing Mounted Bearing

1-9/16" Bearing UCF208-25 Black Oxide Plated Insert Bearing + Square Flanged Housing Mounted Bearing

$26.99 USD
$29.99 USD $26.99 USD
Sale Sold out
Shipping calculated at checkout.
UCF208-25 Black Oxide Plated Insert Bearing Four Bolt Flange Unit
Set Screw Type
1 9/16" inch Inner Diameter

UCF208-25 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter 1 9/16" inch. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • UCF208-25 Black Oxide Plated Insert Bearing + Square Flanged Housing
  • Flange Mounted Bearing
  • Bolt Size: 1/2" inch
  • Shaft Diameter:1 9/16"inch
  • Basic Load (Cr): 32650 N
  • Basic Load (Cor): 16236 N
  • Bearing No: UC208-25
  • Housing No: F208
  • Quantity: 1 Bearing

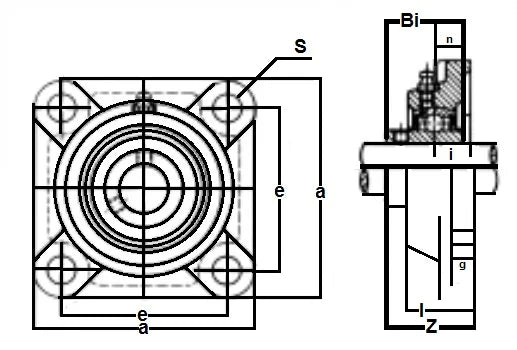

Dimensions (mm)
a e i g l s z Bi n
5-1/8" 4" 53/64" 5/8" 1.937" 17/32" 2.016" 1.937" 1/2"
