1-3/8" Bearing UCF207-22 + Square Flanged Housing + Mounted Bearing

UCF207-22 Square Flanged Bearing Unit – 1-3/8" ID
✔️ Heavy-Duty 4-Bolt Mount – With Set Screws – UC207-22 Insert

The UCF207-22 is a rugged four-bolt flange-mounted bearing unit with a 1-3/8" inner diameter and cylindrical bore secured by set screws. Featuring a round cartridge-style back for precise alignment, it's perfect for use in rotating drums, rollers, and machinery requiring stable, accurate bearing positioning.

✅ Type: Four-bolt square flanged mounted bearing
✅ Insert bearing: UC207-22
✅ Bore type: Cylindrical (with set screws)
✅ Inner diameter: 1-3/8"
✅ Mounting style: Round back cartridge for precision alignment
✅ Quantity: 1 bearing unit
✅ Application: Rotating drums, rollers, conveyors, and industrial setups
✅ Load ratings:
 ✔️ Basic dynamic load (Cr): 25.7 kN
 ✔️ Basic static load (Cor): 15.4 kN
✅ Bolt hole size: 7/16"

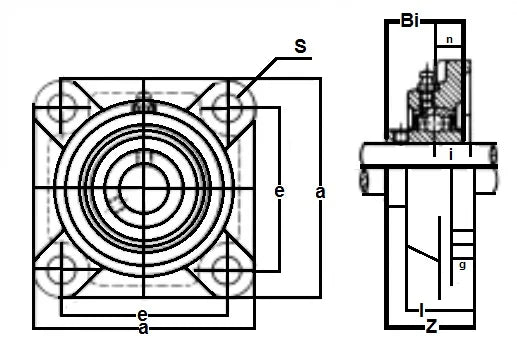

Unit Dimensions (inches):

• a (overall flange length): 4-19/32"

• e (bolt hole spacing): 3-5/8"

• i (housing height): 3/4"

• g (flange thickness): 5/8"

• l (bearing seat depth): 1-11/32"

• s (bolt hole diameter): 35/64"

• z (flange height): 1-3/4"

• Bi (insert width): 1-11/16"

• n (set screw spacing): 11/16"

💡 Why choose a flanged bearing unit with a cylindrical bore?

The square flange offers stable 4-bolt mounting for vibration-prone environments.
Set screws securely lock the shaft in place - ideal for rotating equipment.
The round back cartridge allows perfect alignment and less stress on the shaft.

Mount it strong, align it right - this UCF207-22 unit brings strength, precision, and lasting performance to your machine!
