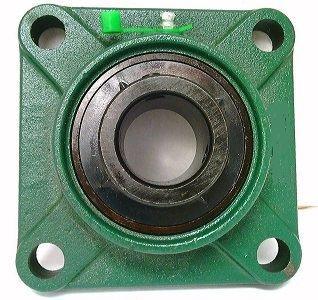

• 1-1/4" Bearing UCF207-20 Black Oxide Plated Insert + Square Flanged Housing Mounted Bearing
  • 1-1/4" Bearing UCF207-20 Black Oxide Plated Insert + Square Flanged Housing Mounted Bearing
1 2

VXB

1-1/4" Bearing UCF207-20 Black Oxide Plated Insert + Square Flanged Housing Mounted Bearing

1-1/4" Bearing UCF207-20 Black Oxide Plated Insert + Square Flanged Housing Mounted Bearing

$61.19 USD
$67.99 USD $61.19 USD
Sale Sold out
Shipping calculated at checkout.
UCF207-20 Black Oxide Plated Insert + Four Bolt Flange Unit
Set Screw Type
1 1/4" inch Inner Diameter


UCF207-20 Black Oxide Plated Insert Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1 1/4" inch. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • UCF207-20 Black Oxide Plated Insert Bearing + Square Flanged Housing
  • Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 1 1/4" inch
  • Basic Load (Cr): 25.7 KN
  • Basic Load (Cor): 15.4 KN
  • Bearing No: UC207-20
  • Housing No: F207
  • Quantity: 1 Bearing

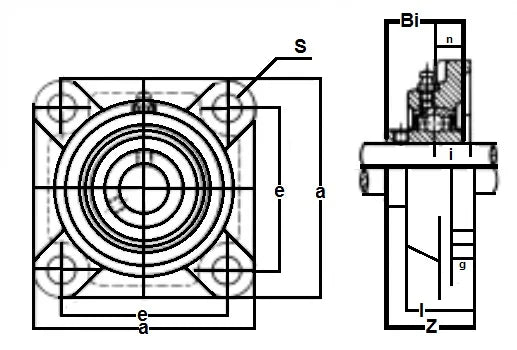

Dimensions (inches)
a e i g l s z Bi n
4-19/32" 3-5/8" 3/4" 5/8" 1-11/32" 35/64" 1-3/4" 1-11/16" 11/16"
