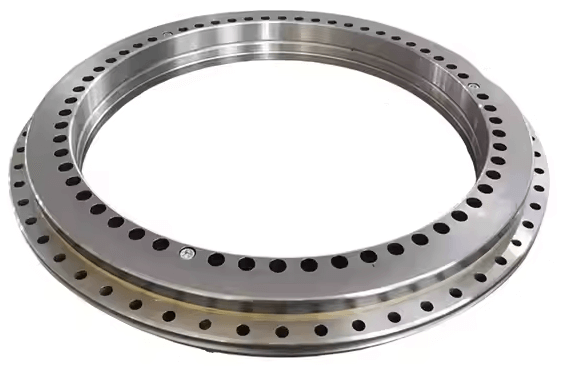

YRT80 High Precision Sealed Turntable Slewing Bearing
YRT80 High Precision Sealed Turntable Slewing Bearing
Prix habituel
$514.35 USD
Prix habituel
$381.00 USD
Prix promotionnel
$514.35 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
YRT80 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.
| ID | Tolerance | OD | Tolerance | Bearing Height | Tolerance | Height 1 | General Tolerance | Tight Tolerance | Height 2 | Tight Tolerance | OD inner ring | Height outer ring | Shoulder inner ring | Shoulder outer ring | |
| d(mm) | d(mm) | D(mm) | D(mm) | H(mm) | H(mm) | H1(mm) | H1(mm) | H1(mm) | H2(mm) | H2(mm) | D1(mm) | C(mm) | ds(mm) | Dh(mm) | |
| YRT80 | 80 | 0/-0.009 | 146 | 0/-0.011 | 35 | ±0.3 | 23.35 | ±0.15 | ±0.025 | 11.65 | ±0.02 | 130 | 12 | 128 | 132 |
| Mounting holes inner ring | Connection screw | Positional relationship | Mounting holes outer ring | Lifting hole | Positional relationship | Fixing screw | Tightening torque | Axial loading | |||
| PCD1(mm) | n1-Ø | n2-M | n1+n2 | PCD2(mm) | n3-Ø | n4-M | n3+n4 | M | M0(Nm) | Coa(KN) | Ca(KN) |
| 92 | 10-Ø5.6 x Ø10↓4 | 2-M4 | 12*30° | 138 | 12-Ø4.6 | 12*30° | M4 | 8.5 | 158 | 38 | |
| Radial loading | Friction torque | Limit speed | Runout P4 | Runout P2 | Weight | |
| Cor(KN) | Cr(KN) | M(Nm) | nG(rpm) | Kia, Sia, Kea, Sea(mm) | Kia, Sia, Kea, Sea(mm) | m(Kg) |
| 98 | 44 | 3 | 350 | 0.003 | 0.0015 | 2.4 |
