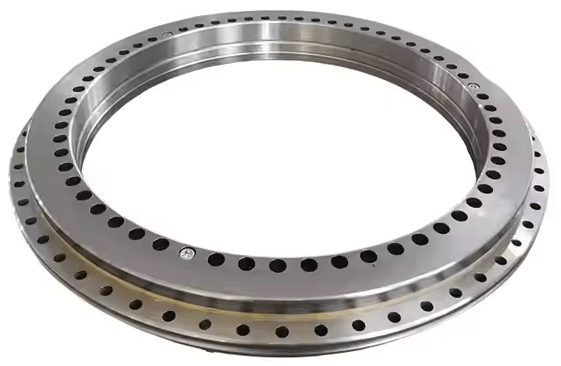

YRT460 High Precision Sealed Turntable Slewing Bearing
YRT460 High Precision Sealed Turntable Slewing Bearing
Prix habituel
$4,171.50 USD
Prix habituel
$3,090.00 USD
Prix promotionnel
$4,171.50 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
YRT460 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.
| ID | Tolerance | OD | Tolerance | Bearing Height | Tolerance | Height 1 | General Tolerance | Tight Tolerance | Height 2 | Tight Tolerance | OD inner ring | Height outer ring | Shoulder inner ring | Shoulder outer ring | |
| d(mm) | d(mm) | D(mm) | D(mm) | H(mm) | H(mm) | H1(mm) | H1(mm) | H1(mm) | H2(mm) | H2(mm) | D1(mm) | C(mm) | ds(mm) | Dh(mm) | |
| YRT460 | 460 | 0/-0.023 | 600 | 0/-0.028 | 70 | ±0.45 | 46 | ±0.225 | ±0.06 | 24 | ±0.03 | 560 | 22 | 558 | 562 |
| Mounting holes inner ring | Connection screw | Positional relationship | Mounting holes outer ring | Lifting hole | Positional relationship | Fixing screw | Tightening torque | Axial loading | |||
| PCD1(mm) | n1-Ø | n2-M | n1+n2 | PCD2(mm) | n3-Ø | n4-M | n3+n4 | M | M0(Nm) | Coa(KN) | Ca(KN) |
| 482 | 46-Ø10 x Ø 15↓8.2 | 2-M8 | 48*7.5° | 580 | 45-Ø9.3 | 3-M10 | 48*7.5° | M8 | 34 | 2550 | 290 |
| Radial loading | Friction torque | Limit speed | Runout P4 | Runout P2 | Weight | |
| Cor(KN) | Cr(KN) | M(Nm) | nG(rpm) | Kia, Sia, Kea, Sea(mm) | Kia, Sia, Kea, Sea(mm) | m(Kg) |
| 880 | 265 | 70 | 120 | 0.006 | 0.003 | 45.2 |
