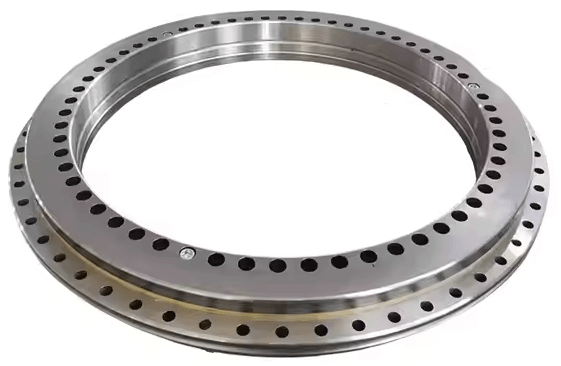

YRT260 High Precision Sealed Turntable Slewing Bearing
YRT260 High Precision Sealed Turntable Slewing Bearing
Prix habituel
$2,085.75 USD
Prix habituel
$1,545.00 USD
Prix promotionnel
$2,085.75 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
YRT260 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.
| ID | Tolerance | OD | Tolerance | Bearing Height | Tolerance | Height 1 | General Tolerance | Tight Tolerance | Height 2 | Tight Tolerance | OD inner ring | Height outer ring | Shoulder inner ring | Shoulder outer ring | |
| d(mm) | d(mm) | D(mm) | D(mm) | H(mm) | H(mm) | H1(mm) | H1(mm) | H1(mm) | H2(mm) | H2(mm) | D1(mm) | C(mm) | ds(mm) | Dh(mm) | |
| YRT260 | 260 | 0/-0.018 | 385 | 0/-0.02 | 55 | ±0.4 | 36.5 | ±0.2 | ±0.040 | 18.5 | ±0.025 | 345 | 18 | 343 | 347 |
| Mounting holes inner ring | Connection screw | Positional relationship | Mounting holes outer ring | Lifting hole | Positional relationship | Fixing screw | Tightening torque | Axial loading | |||
| PCD1(mm) | n1-Ø | n2-M | n1+n2 | PCD2(mm) | n3-Ø | n4-M | n3+n4 | M | M0(Nm) | Coa(KN) | Ca(KN) |
| 280 | 34-Ø9.3 x Ø15↓8.2 | 2-M8 | 36*10° | 365 | 33-Ø9.3 | 3-M12 | 36*10° | M8 | 34 | 1090 | 168 |
| Radial loading | Friction torque | Limit speed | Runout P4 | Runout P2 | Weight | |
| Cor(KN) | Cr(KN) | M(Nm) | nG(rpm) | Kia, Sia, Kea, Sea(mm) | Kia, Sia, Kea, Sea(mm) | m(Kg) |
| 355 | 140 | 20 | 240 | 0.006 | 0.003 | 17.8 |
