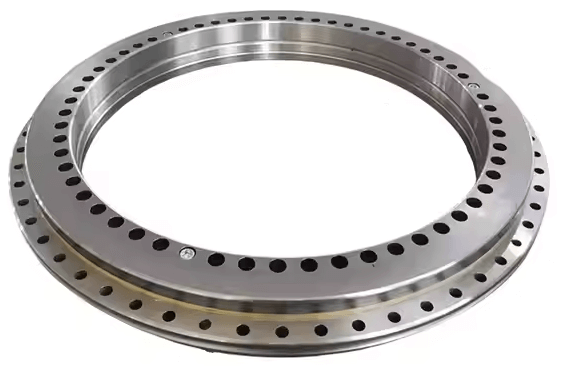

YRT120 High Precision Sealed Turntable Slewing Bearing
YRT120 High Precision Sealed Turntable Slewing Bearing
Prix habituel
$789.75 USD
Prix habituel
$585.00 USD
Prix promotionnel
$789.75 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
YRT120 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.
| ID | Tolerance | OD | Tolerance | Bearing Height | Tolerance | Height 1 | General Tolerance | Tight Tolerance | Height 2 | Tight Tolerance | OD inner ring | Height outer ring | Shoulder inner ring | Shoulder outer ring | |
| d(mm) | d(mm) | D(mm) | D(mm) | H(mm) | H(mm) | H1(mm) | H1(mm) | H1(mm) | H2(mm) | H2(mm) | D1(mm) | C(mm) | ds(mm) | Dh(mm) | |
| YRT120 | 120 | 0/-0.010 | 210 | 0/-0.015 | 40 | ±0.35 | 26 | ±0.175 | ±0.025 | 14 | ±0.02 | 184 | 12 | 182 | 186 |
| Mounting holes inner ring | Connection screw | Positional relationship | Mounting holes outer ring | Lifting hole | Positional relationship | Fixing screw | Tightening torque | Axial loading | |||
| PCD1(mm) | n1-Ø | n2-M | n1+n2 | PCD2(mm) | n3-Ø | n4-M | n3+n4 | M | M0(Nm) | Coa(KN) | Ca(KN) |
| 135 | 22-Ø7 x Ø11↓6.2 | 2-M6 | 24*15° | 195 | 21-Ø7 | 3-M8 | 24*15° | M6 | 14 | 520 | 112 |
| Radial loading | Friction torque | Limit speed | Runout P4 | Runout P2 | Weight | |
| Cor(KN) | Cr(KN) | M(Nm) | nG(rpm) | Kia, Sia, Kea, Sea(mm) | Kia, Sia, Kea, Sea(mm) | m(Kg) |
| 124 | 69 | 7 | 720 | 0.003 | 0.0015 | 4.61 |
