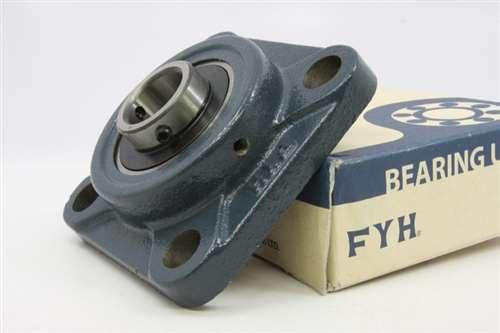

UCF205J FYH Bearing
Square Flanged Mounted Bearing
Cylindrical bore (with set screws)
25mm Inner Diameter

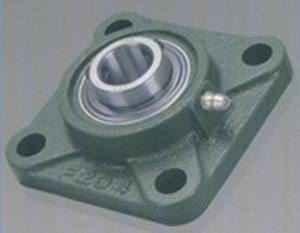

UCF205J FYH is a heavy duty four-bolt flange unit which has a round cartridge on the backside of the flange that allows for precise mounting and alignment.

  • UCF205J FYH Bearing
  • Four Bolt Flanged Bearing
  • Housing Number: F205
  • Bolt Size: M10 3/8 inch
  • Shaft Size: 25 mm
  • Locking Style: Set Screw Locking
  • Basic Load (Cr): 14 kN
  • Basic Load (Cor): 7.85 KN
  • Bearing No: UC205
  • Grease Fitting: 28UNF
  • Quantity: 1 Bearing

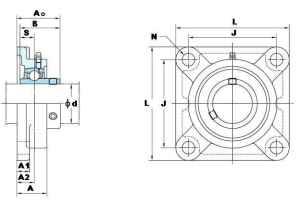

Dimensions (mm)
L A J N A1 A2 A0 B S
95mm 27mm 70mm 12mm 13mm 16mm 35.8mm 34.1mm 14.3mm
