TWJ6UU NB 3/8" Ball Bushing Adjustable Block Linear Motion

TWJ6UU NB 3/8" Ball Bushing Adjustable Block Linear Motion

$98.09 USD
$108.99 USD $98.09 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Twj6uu NB Type:Slide Unit
Pillow Block
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

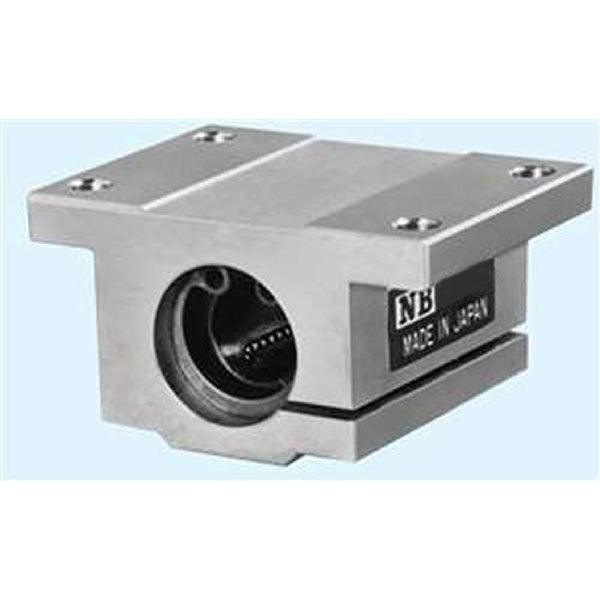

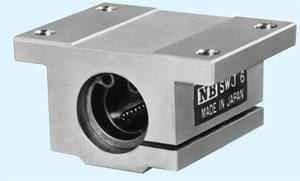

3/8" Slide Unit Pillow Block (Inch Series), the innerdiameter(bore) is inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • Twj6uu NB Bearing
  • Linear ball bushing
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 95 LBF
  • Static load rating Cor: 120 LBF

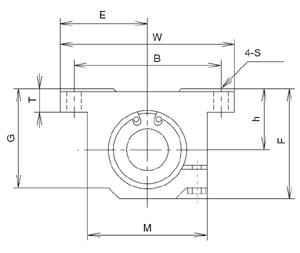

Major dimensions Mounting dimensions
h E W L F T G M B C S
.5" .875" 1.75" 1.313" .938" .188" .875" 1.125" 1.437" .875" .156"
