TK30 NB Self Aligning 30mm Ball Bushings Linear Motion
TK30 NB Self Aligning 30mm Ball Bushings Linear Motion
Prix habituel
$71.09 USD
Prix habituel
$78.99 USD
Prix promotionnel
$71.09 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

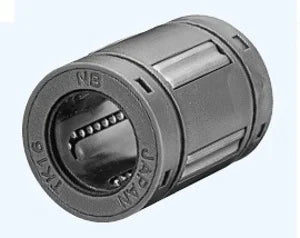

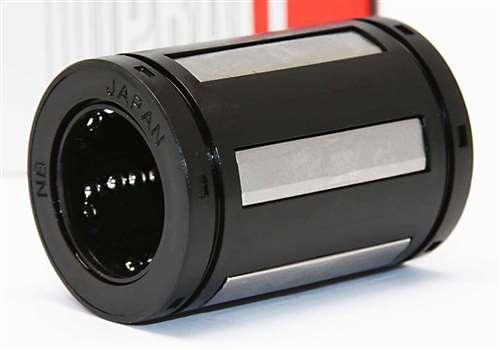

| TK30 NB TopBall Linear Systems Bearing 30mm Inner Diameter Made in Japan |
TK30 NB 30mm Bore Standard TopBall type linear motion ball bushings bearings, inner diameter(bore) is 25mm dimensions with built-in seals, the Topball slide bush is a high performance bushing with three times the load capacity, capable of providing up to 27 times normal travel life of a conventional slide bushing, high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
|
| ||||||||
|---|---|---|---|---|---|---|---|---|

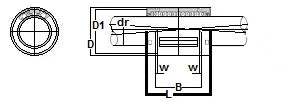

| dr | D | L | B | W | D1 | |||
| mm | tolerance | mm | tolerance | mm | tolerance | |||
| 30 | 1-11 | 47 | 68 | 0.2 | 52.1 | 0-0.3 | 1.85 | 44.5 |
