SW12GUU 3/4 inch Linear Motion - Seals Ball Bushing
SW12GUU 3/4 inch Linear Motion - Seals Ball Bushing
Prix habituel
$35.99 USD
Prix habituel
$39.99 USD
Prix promotionnel
$35.99 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| SW12GUU with Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |

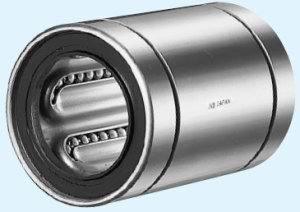

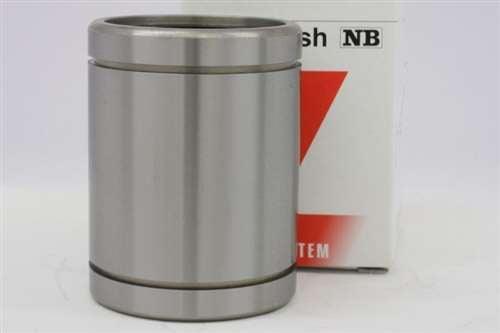

SW12GUU 3/4" Bore linear motion ball bushing/bearing, SW12GUU is Seals on both sides, inner diameter(bore) is 3/4" inch dimensions with resin retainer, Bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

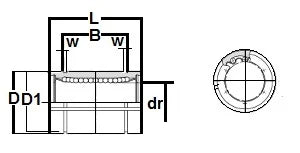

| Major dimensions and tolerance (inches) | Eccentricity (inch) |
Radial clearance (inch) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||
| 3/4" | 0-0004 | 1-1/4" | 0-0.00065 | 1-5/8" | 0-0.2 | 1-11/64" | 0-.02 | 3/64" | 1-11/64" | 0.0004 | 0.0006 |
