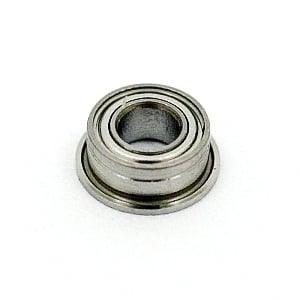

STAR Dental Handpiece SFR144K1TLGZWN Ceramic ABEC-7 Flanged Angular Contact Bearing 1/8" x 1/4" x 7/64"

STAR Dental Handpiece SFR144K1TLGZWN Ceramic ABEC-7 Flanged Angular Contact Bearing 1/8" x 1/4" x 7/64"

$26.99 USD
$29.99 USD $26.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
STAR Flanged Dental Handpiece SFR144K1TLGZWN
Stainless Steel ABEC 7
Thickness of flange is 0.42mm
with separate inner ring
Retainer : Torlon



STAR Dental Handpiece Flanged Hybrid Ceramic ABEC-7 Angular Contact Ball Bearing. Made of stainless steel and has Solid Si3N4 Ceramic balls. Cage is made from Torlon for lowest friction, long life and highest speed. Bearing is closed from one side by one metal Shield. Bearing has a unique groove in outer ring, thickness of flange is 0.42mm

  • SFR144K1TLGZWN STAR Dental Handpiece Ball Bearing
  • Flanged with separate inner ring ball bearing
  • Bearing has a unique groove in outer ring, thickness of flange is 0.42mm
  • Material: Stainless Steel
  • Quality: ABEC-7
  • Closures: One Shield
  • Balls: Si3N4 Ceramic (Silicon Nitride)
  • Balls retainer: Torlon
  • Speed: 400,000 RPM
  • Size: 3.175 x 6.35 x 2.78 mm/Metric
  • Dimension: 1/8" x 1/4" x 7/64"
  • Quantity: 1 Bearing



💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
