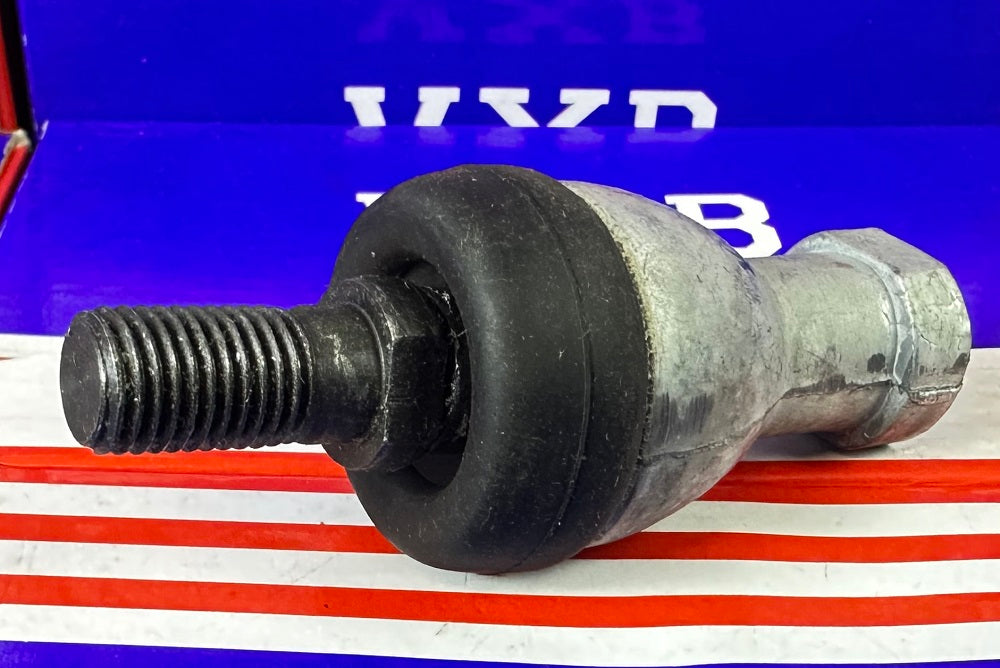

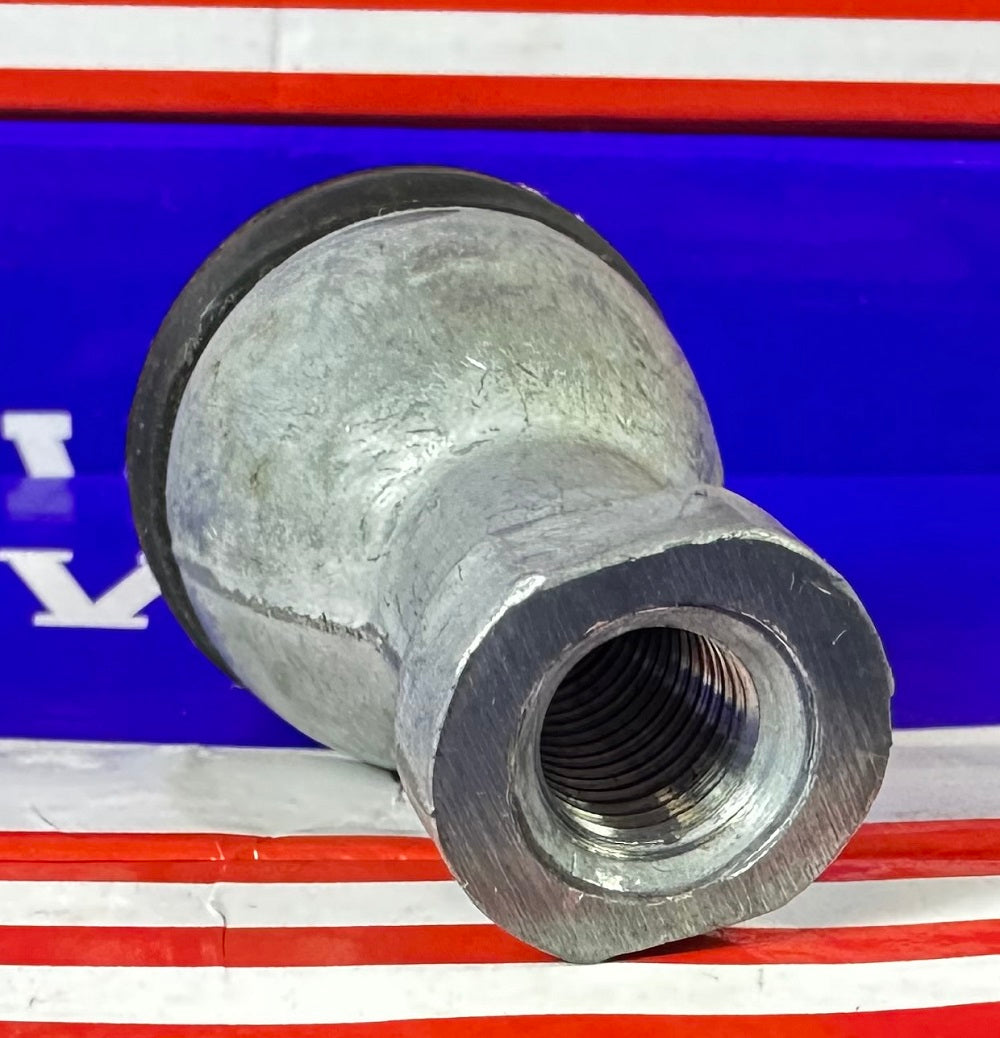

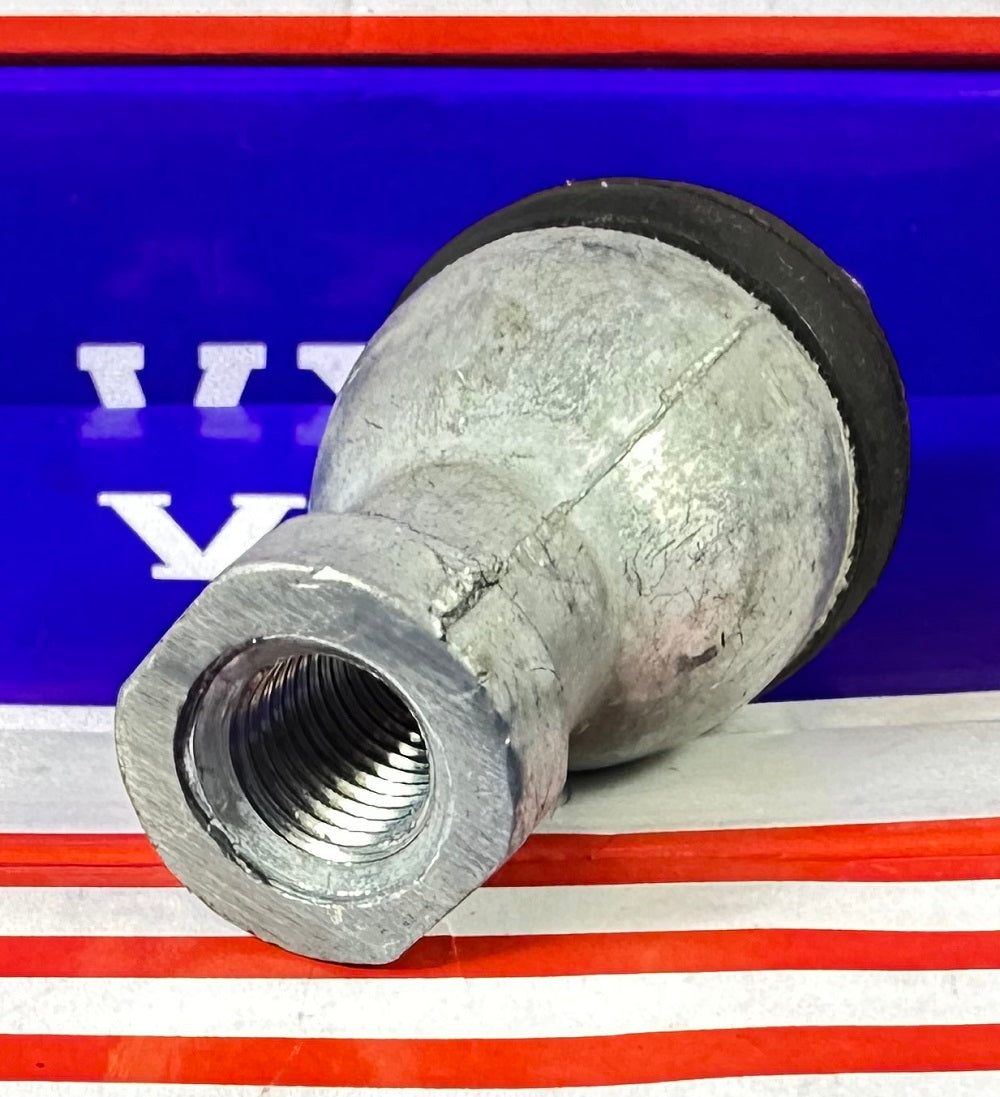

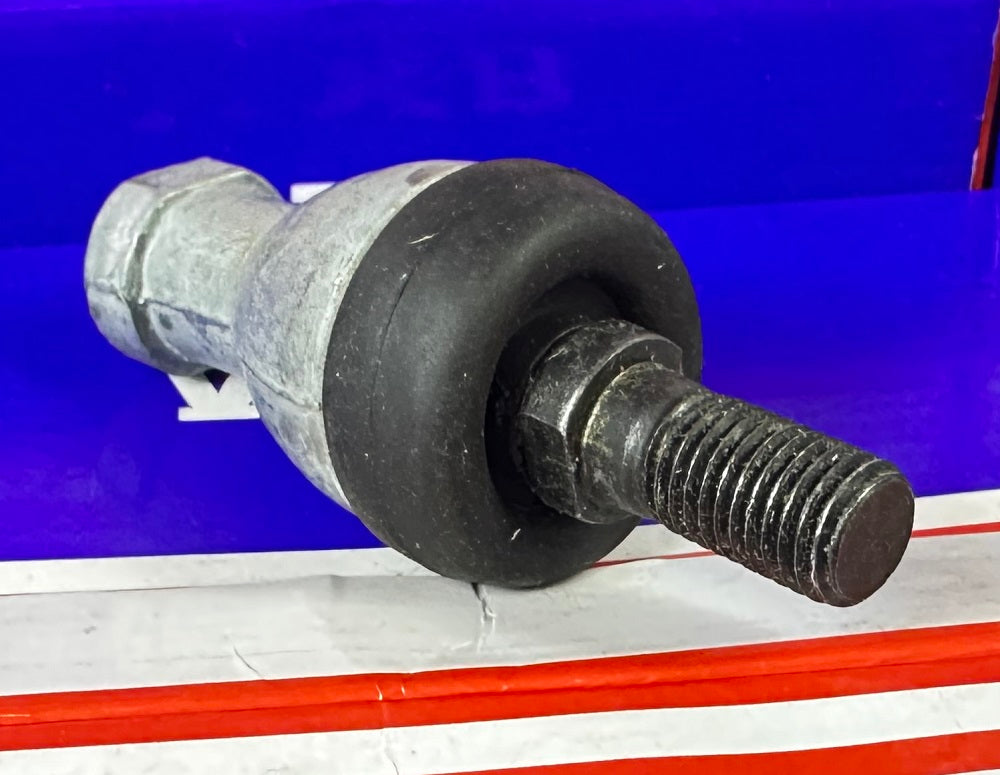

SQZ10 Straight Shape Ball Joint Rod End Bearing

SQZ10 Straight Shape Ball Joint Rod End Bearing

$20.23 USD
$14.99 USD $20.23 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Straight Shape Ball joint Rod end bearing
SQZ10

Straight Shape Ball joint Rod end bearing SQZ10 The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

  • SQZ10(Ball joint rod ends) Bearing
  • Male and female Ends
  • Quantity: 1 Bearing
  • Lubrication: Grease:
  • Inside Diameter:10 mm
  • Outside Diameter:d1= 30 mm
  • Thickness:L= 74.5 mm
  • Load rating: 8.4


Type d d1 d2
min		 d3
max		 l1
min		 l2 S1 L
max		 L1 L2
max		 L3
min		 D1
max		 D2
max		 D3
max		 S2 a
SQZ10 10 M10X1.25 14 30 15 19.5 11 74.5 35 6.5 18 15 19 28 17 15


Afficher tous les détails
