SER-35mm Bearing Insert 35mm Mounted
SER-35mm Bearing Insert 35mm Mounted
Prix habituel
$125.99 USD
Prix habituel
$139.99 USD
Prix promotionnel
$125.99 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
SER-35mm Bearing Insert Set Screw Locking 35mm Inner Diameter |
SER-35mm Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.
|

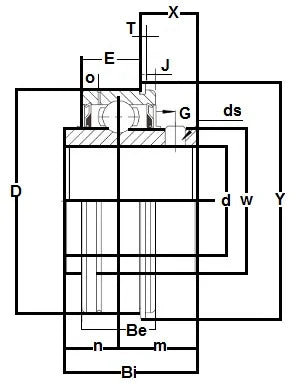

| Dimensions (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | n | m | E | W | o | T | J | G | Y | X | ds(UNF-Thread) |
| 72 | 42.9 | 23.8 | 17.5 | 25.4 | 18.6 | 46.8 | 5.6 | 1.9 | 3.28 | 6.4 | 78.6 | 18.68 | M8XP1.0 |
