SC25UU 25mm Slide Unit Motion Bearing Bushing Block
SC25UU 25mm Slide Unit Motion Bearing Bushing Block
Prix habituel
$26.99 USD
Prix habituel
$29.99 USD
Prix promotionnel
$26.99 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

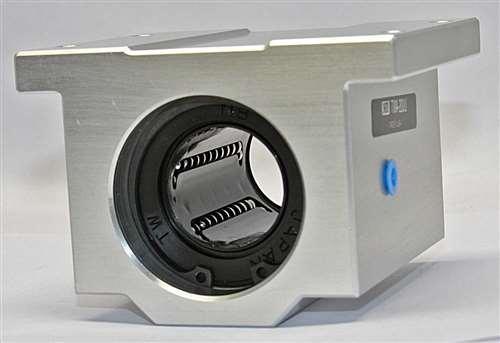

| SC25UU Pillow Block Slide Unit Slide unit with pre-installed 25mm ID Bearing To be used with 25 mm Shafts |
|
25mm Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 25mm dimension with steel retainer, bearing is a high accuracy grade linear bushing.
|

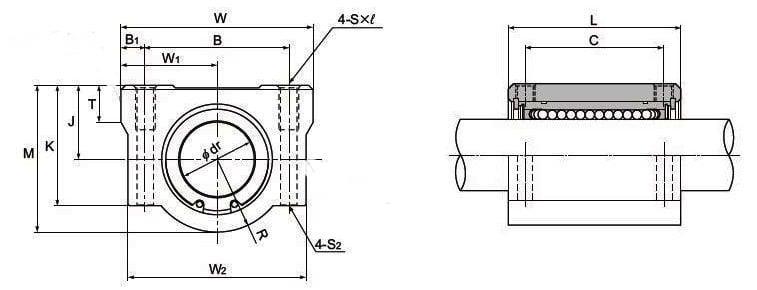

| Dimensions (mm) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| model No | M | W | L | B | B1 | C | Sxl | S2 | J | W1 | K | W2 | T | R | Bore | Bushing |
| SC25UU | 51.5 | 76 | 67 | 54 | 11 | 50 | M8x18 | M6 | 26 | 38 | 41 | 68 | 12 | 25.5 | 25 | LM25UU |
