RBW8 NB 1/2" Resin Block Unit Motion Linear Bearing

RBW8 NB 1/2" Resin Block Unit Motion Linear Bearing

$80.98 USD
$59.99 USD $80.98 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

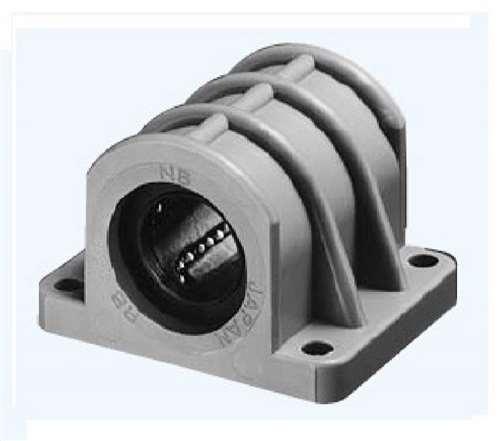

RBW8 NB 1/2" inch Resin Block Type:Slide Unit
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


RBW8 NB 0.5 inch Resin Block Slide Unit, The inner contact diameter is 1/2", The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • RBW8 NB Bearing
  • Linear Ball Bushing
  • Inner Contact Diameter: 1/2"
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 510 N
  • Static load rating Cor: 784 N

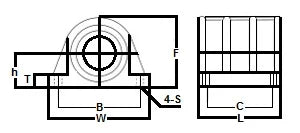

Majar Dimensions
Inner Contact Diameter Outer Dimensions Dimension
inch tolerance h W L F T B C S
0.5 0.0004 0.687 2.000 1.5937 1.2500 0.3437 1.688 1.000 1.57
