RBW10 NB 5/8 inch Resin Block Unit Motion Linear Bearing

RBW10 NB 5/8 inch Resin Block Unit Motion Linear Bearing

$52.19 USD
$57.99 USD $52.19 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

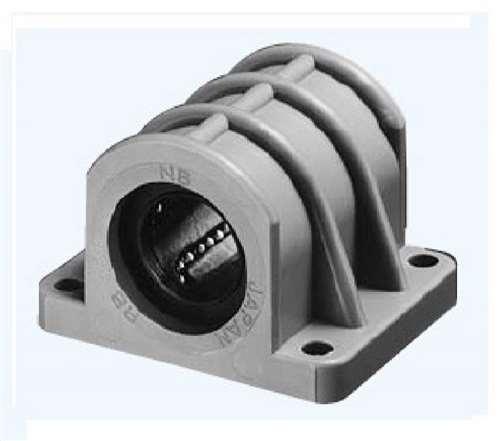

RBW10 NB 5/8" inch Resin Block Type:Slide Unit
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


RBW10 NB 0.5/8" inch Resin Block Slide Unit, The inner contact diameter is 0.625", The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • RBW10 NB Bearing
  • Linear Ball Bushing
  • Inner Contact Diameter: 5/8"= 0.625"
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 774 N
  • Static load rating Cor: 1180 N

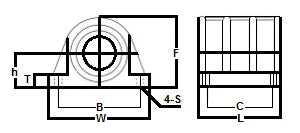

Majar Dimensions
Inner Contact Diameter Outer Dimensions Dimension
inch tolerance h W L F T B C S
0.625 0.0004 0.875 2.500 1.843 1.625 0.375 2.125 1.125 0.189
