NU324 Cylindrical Roller Bearing 120x260x55mm Cylindrical Bearing

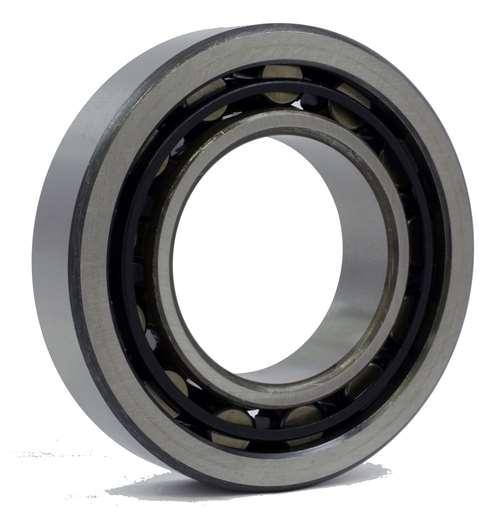

NU324 Cylindrical Roller Bearing
✔️ 120mm x 260mm x 55mm – Removable Inner Ring

The NU324 is a heavy-duty cylindrical roller bearing designed for high radial loads and precision alignment. With a removable inner ring and full chrome steel construction (52100 alloy), it's ideal for gearboxes, electric motors, and industrial machinery where disassembly and durability are essential.

✅ Type: Cylindrical roller bearing – NU configuration
✅ Inner Diameter: 120mm
✅ Outer Diameter: 260mm
✅ Width: 55mm
✅ Removable Inner Ring for easy mounting and dismounting
✅ Material: 52100 Chrome Steel
✅ Dynamic Load Rating (Cr): 450 kN
✅ Static Load Rating (Cor): 510 kN
✅ Pack Size: 1 bearing

Dimensions Table:

💡 What’s the benefit of an NU-style cylindrical roller bearing?
NU-style bearings allow axial displacement of the shaft relative to the housing, which is perfect for managing thermal expansion. The removable inner ring also simplifies installation and maintenance in heavy-duty systems.

Built to carry the load and built to last - install the NU324 in your machinery and roll with confidence under pressure!
