NU226MY Nachi Cylindrical Bearing Japan 130x230x40 Large Bearing
NU226MY Nachi Cylindrical Bearing Japan 130x230x40 Large Bearing
Impossible de charger la disponibilité du service de retrait

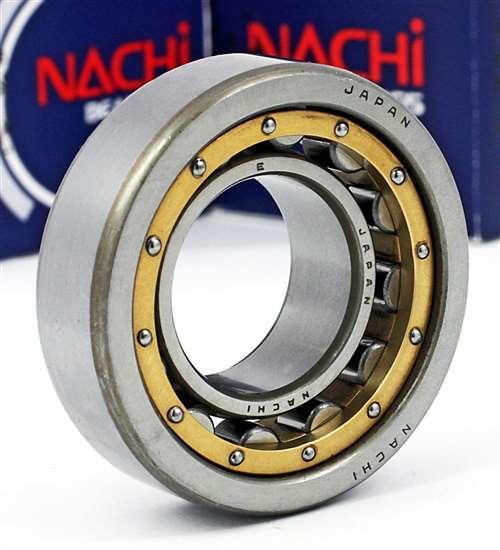

NU226MY Nachi Cylindrical Roller Bearing Bronze Cage 130mm x 230mm x 40mm Made in Japan |
NU226MY Nachi Cylindrical Roller Bearing, Bronze Cage, Made in Japan, theNU226MY inner diameter is 130mm, the NU226MY outer diameter is 230mm, NU226MY width is 40mm.
|
Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are:N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
