NSS8 One-Way 8x24x8mm Bearing Support Required Backstop Clutch

NSS8 One-Way 8x24x8mm Bearing Support Required Backstop Clutch

$26.99 USD
$29.99 USD $26.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

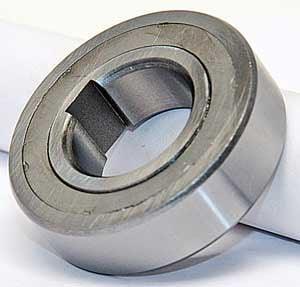

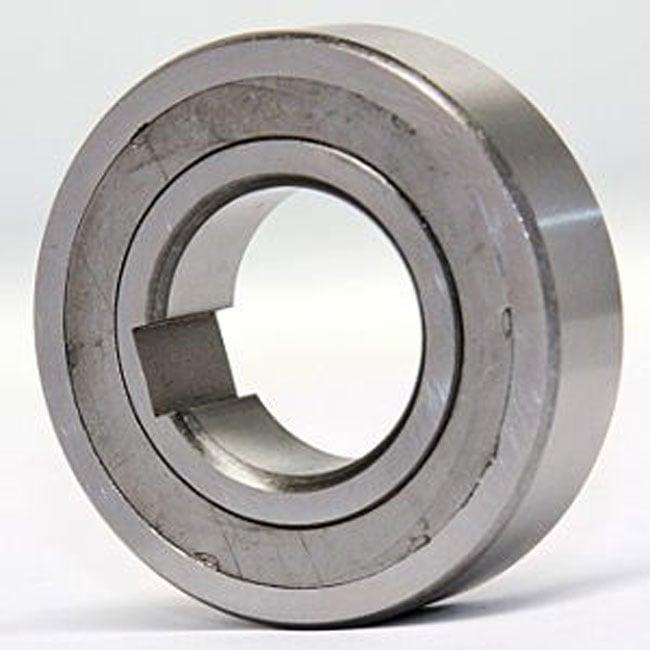

NSS8 One Way Clutch
8mm x 24mm x 8mm
One Clutch Bearing


 NSS8 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, you will need one of the 628 bearings to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. NSS8 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • NSS8 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 8mm x 24mm x 8mm (Metric)
  • Inner Diameter: 8mm
  • Outer Diameter: 24mm
  • Width: 8mm
  • Torque: 5.4 TKN
  • Max Torque: 0.36 Tr
  • Inner Race Overrun: 3,500 RPM
  • Outer Race Overrun: 5,200 RPM
  • Quantity: One Clutch

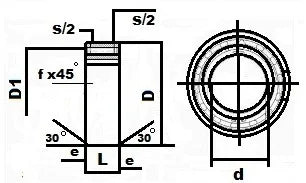

Dimension (mm)
d D D1 L s e f
8 24 25.9 8 13 0.6 0.6
