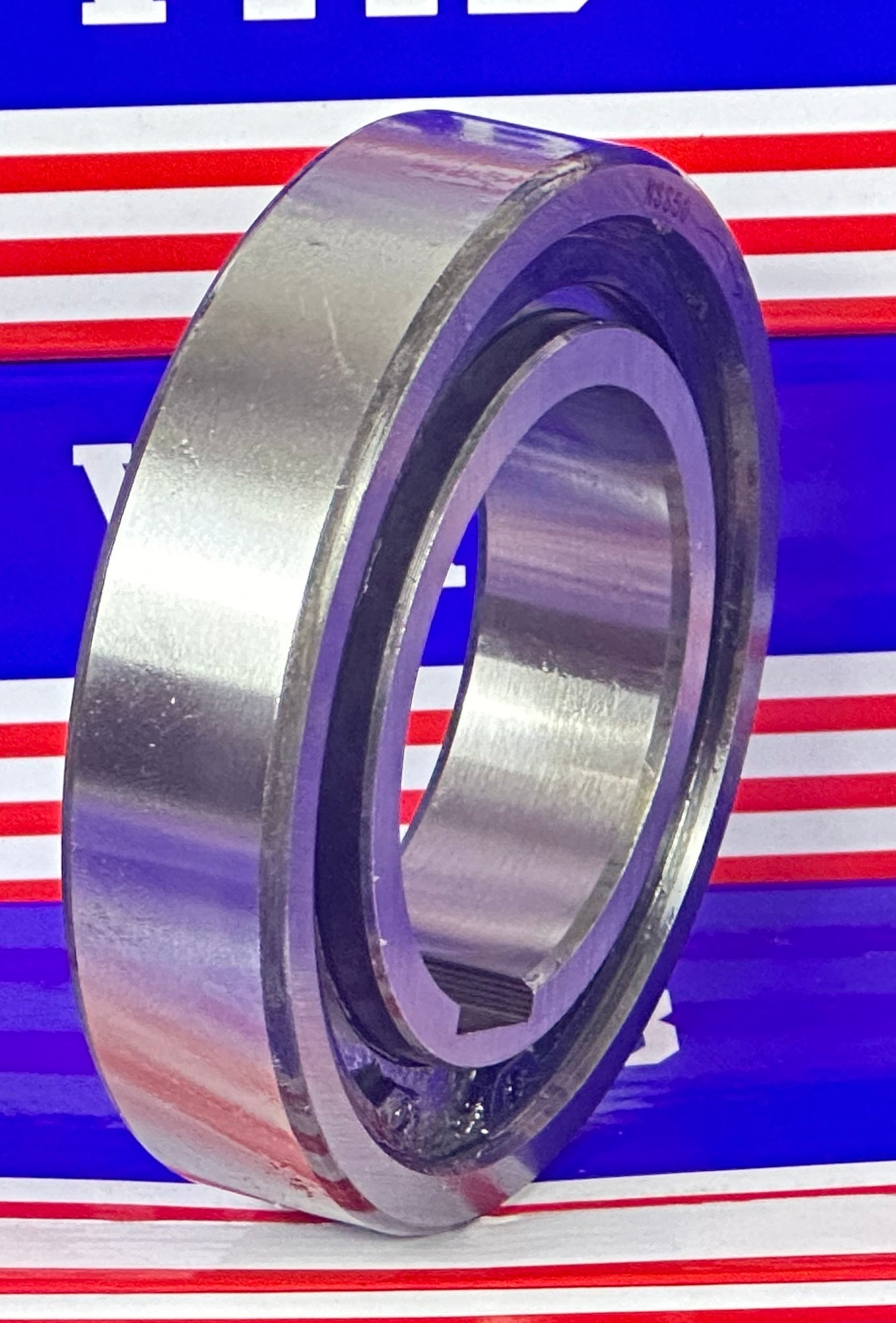

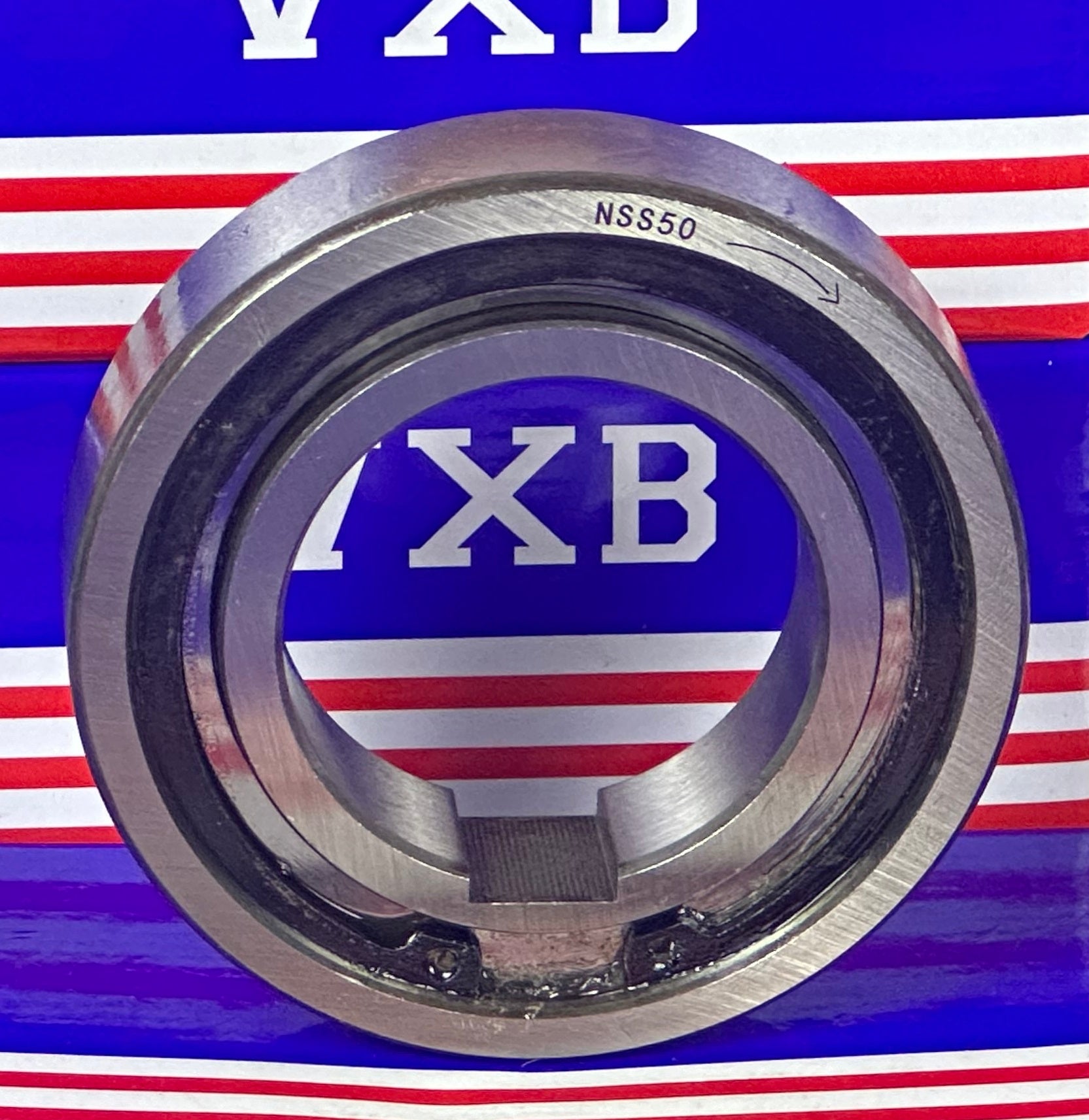

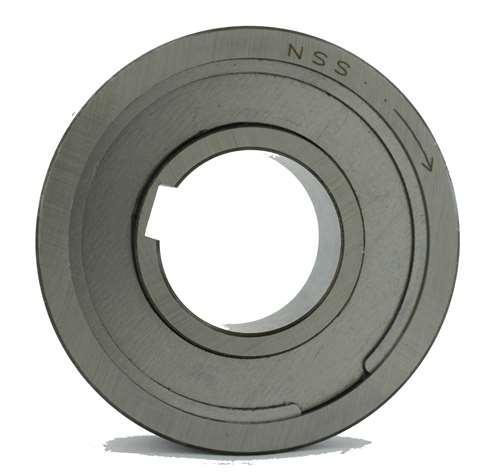

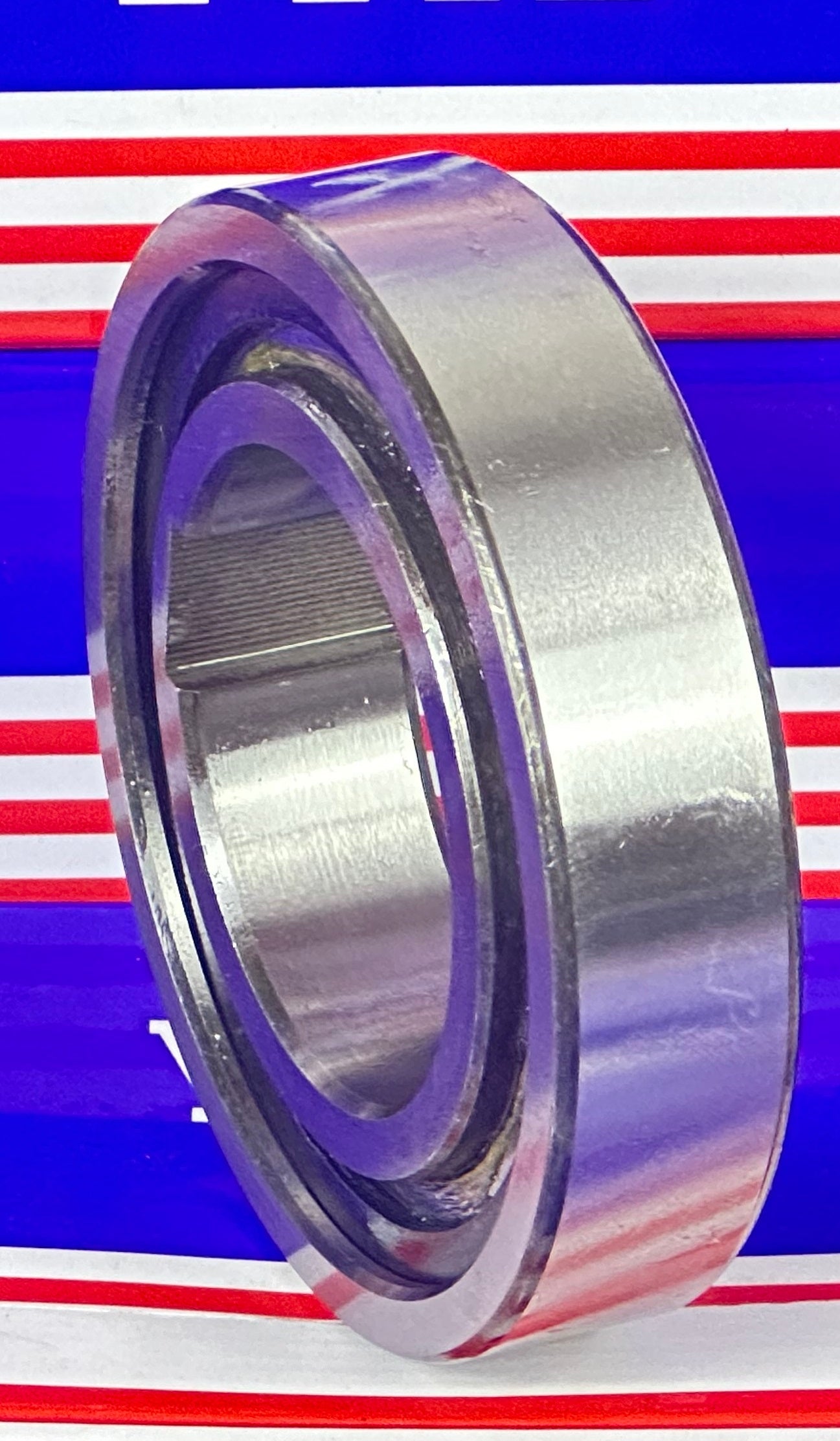

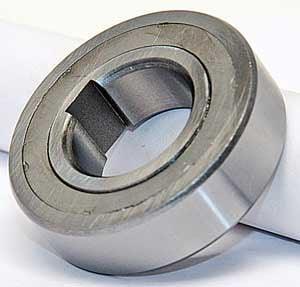

NSS50 One-Way 50x90x20 Bearing Support Required Backstop Clutch

NSS50 One-Way 50x90x20 Bearing Support Required Backstop Clutch

Prix habituel $79.99 USD
Prix habituel $88.88 USD Prix promotionnel $79.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
NSS50 One Way Clutch
One Clutch


NSS50 is a one-way clutch used for overrunning, indexing, and backstopping, this type is non-bearing supported, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. NSS50 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • NSS50 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 50mm x 90mm x 20mm (Metric)
  • Inner Diameter: 50mm
  • Outer Diameter: 90mm
  • Width: 20mm
  • Torque: 184 TKN
  • Resistance Torque: 13 TKN
  • Inner Race Overrun: 950 RPM
  • Outer Race Overrun: 1,500 RPM
  • Quantity: One Clutch

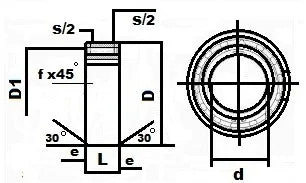

Dimension (mm)
d D D1 L s e f
50 90 82 20 2.5 1.2 1
