NSS45 One-Way 45x85x19 Bearing Support Required Backstop Clutch

NSS45 One-Way 45x85x19 Bearing Support Required Backstop Clutch

Prix habituel $53.99 USD
Prix habituel $59.99 USD Prix promotionnel $53.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
NSS45 One Way Clutch
One Clutch


NSS45 is a one-way clutch used for overrunning, indexing, and backstopping, this type is non-bearing supported, Also known as a sprag clutch, freewheel clutch, or backstop. NSS45 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • NSS45 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 45mm x 85mm x 19mm (Metric)
  • Inner Diameter: 45mm
  • Outer Diameter: 85mm
  • Width: 19mm
  • Torque: 174 TKN
  • Resistance Torque: 11 Tr
  • Inner Race Overrun: 1,000 RPM
  • Outer Race Overrun: 1,600 RPM
  • Quantity: One Clutch

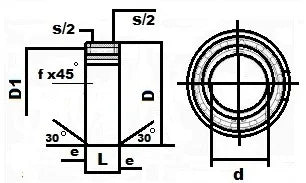

Dimension (mm)
d D D1 L s e f
45 85 77 19 2.5 1.2 1
