VXB

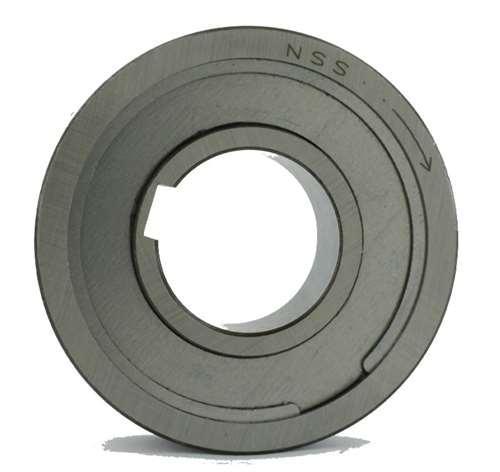

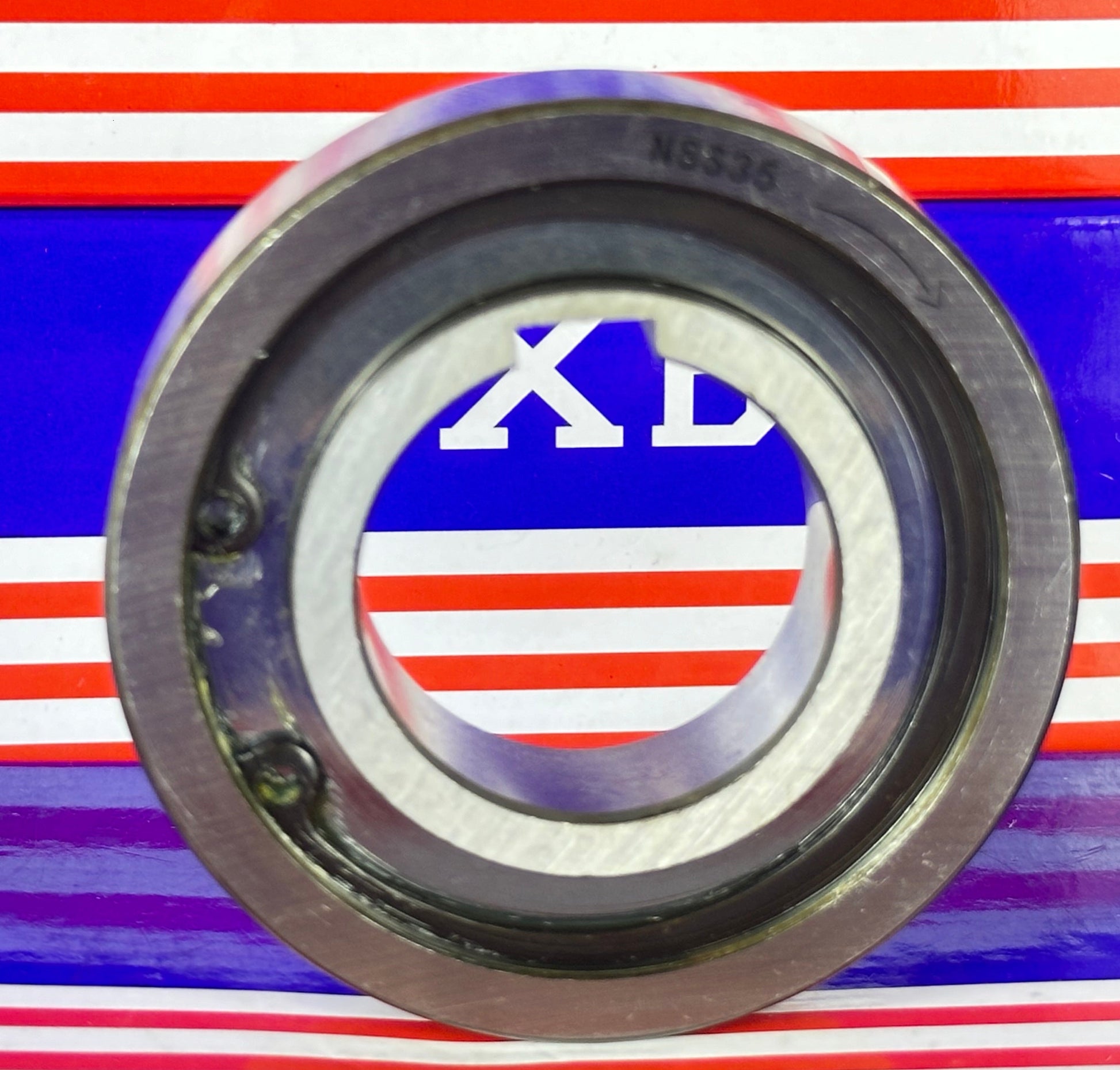

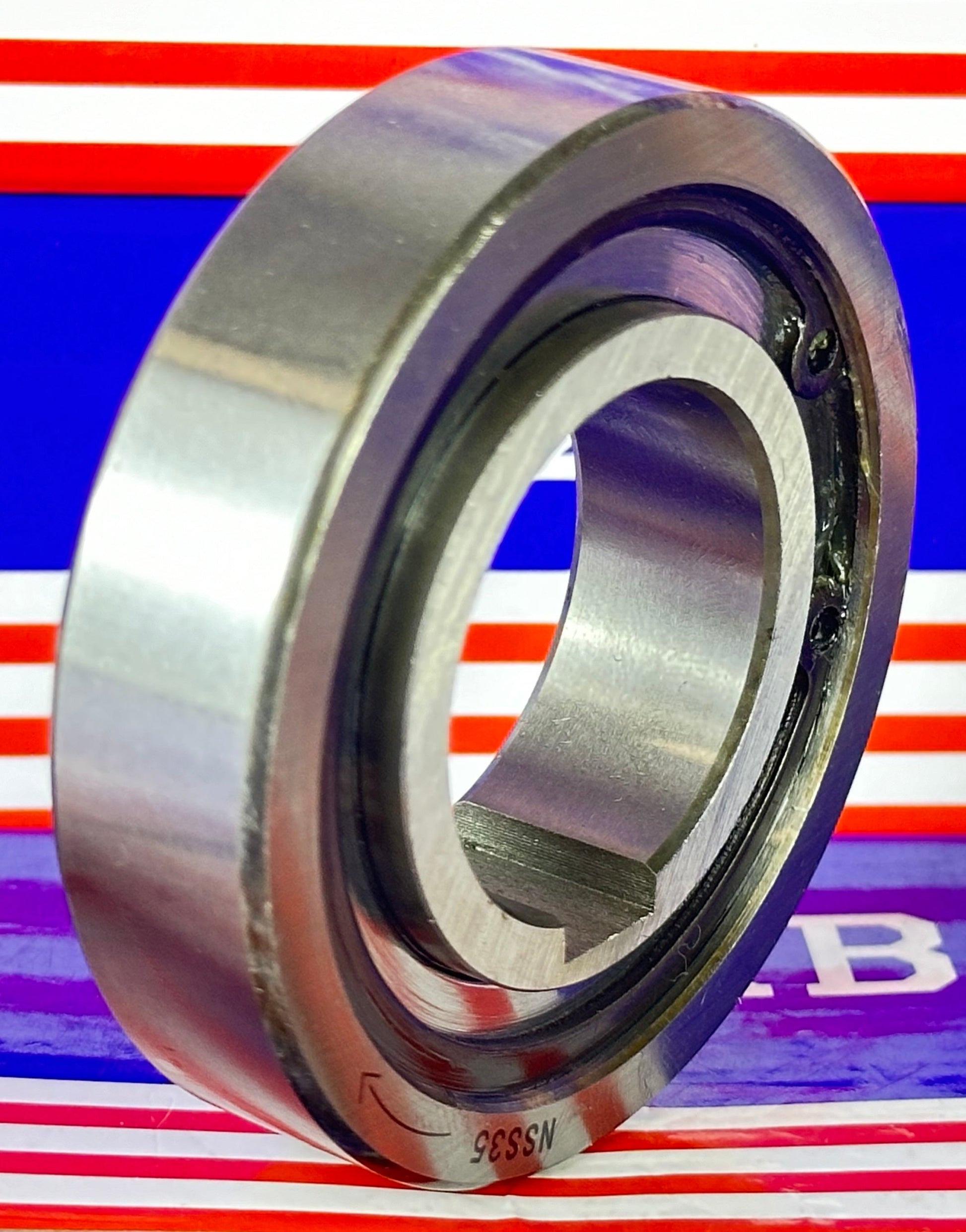

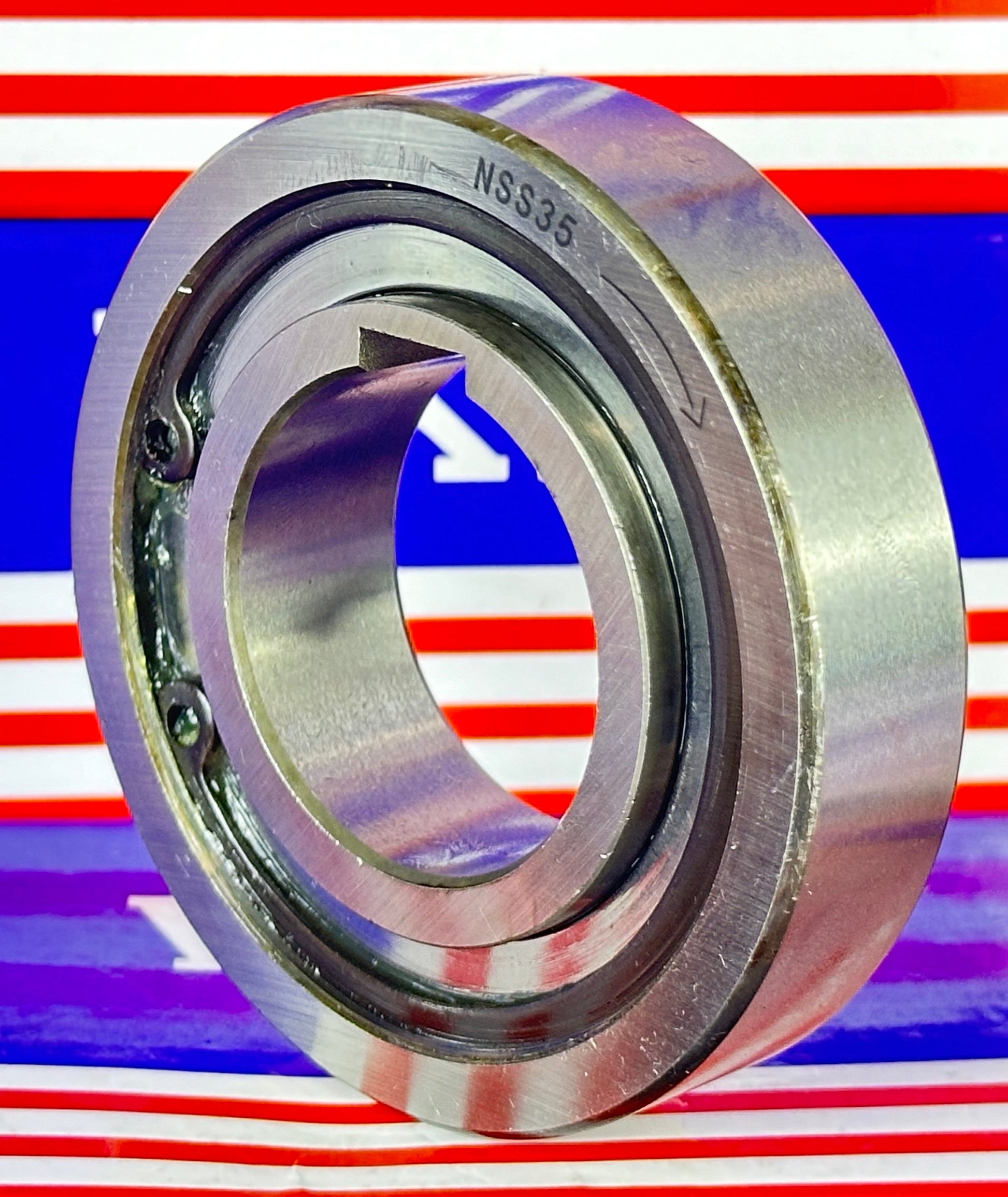

NSS35 One-Way 35x72x17 Bearing Support Required Backstop Clutch

NSS35 One-Way 35x72x17 Bearing Support Required Backstop Clutch

Prix habituel $44.99 USD
Prix habituel $49.99 USD Prix promotionnel $44.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
NSS35 One Way Bearing
One Clutch


NSS35 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, this is exactly the same size as any 6207 ball bearing, you will need one of the 6207 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. NSS35 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • NSS35 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 35mm x 72mm x 17mm (Metric)
  • Inner Diameter: 35mm
  • Outer Diameter: 72mm
  • Width: 17mm
  • Torque: 114 TKN
  • Max Torque: 285 TKN
  • Inner Race Overrun: 1,300 RPM
  • Outer Race Overrun: 2,000 RPM
  • Quantity: One Clutch

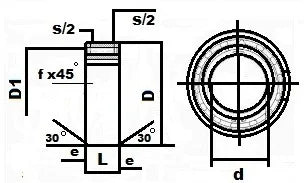

Dimension (mm)
d D D1 L s e f
35 72 64 17 2.5 0,8 1


Afficher tous les détails
