NNF5016ADA-2LSV Sheave Bearing 2-Row Full Complement Bearing

NNF5016ADA-2LSV Sheave Bearing, Bearing is a double row full Complement cylindrical roller bearing, it has highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NNF5016ADA-2LSV lubricates with a lithium soap-based grease containing an EP additive, it lubricates through lubrication hole & grooves only in inner ring.

• NNF5016ADA-2LSV Sheave Bearing
• Brand: VXB
• Double Row Full Complement Cylindrical Roller Sheave Bearing

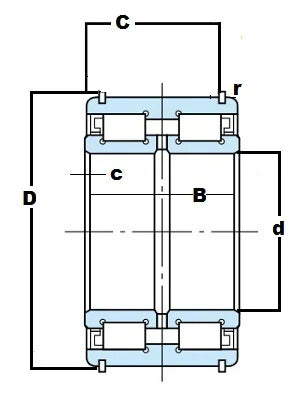

• Dimensions: 80mm x 125mm x 60mm/Metric
• ID (inner diameter)/Bore: 80mm
• OD (outer diameter): 125mm
• Width: 60mm
• Size: 80 x 125 x 60 mm
• Snap Ring: WRE 125 (not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 250,000 N
• Static load rating Cor: 430,000 N
• Limiting Speed:
  • Grease Lubrication: 1,250 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Snap Ring: WRE 125 (not included)
• Application: Highly suitable in rope sheave
