NNF5013ADA-2LSV Sheave 2-Row Full Complement Bearing

NNF5013ADA-2LSV Sheave Bearing, Bearing is a double row full Complement cylindrical roller bearing, Bearing has highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, Bearing lubricates with a lithium soap-based grease containing an EP additive, Bearing lubricates through lubrication hole & grooves only in inner ring.

• NNF5013ADA-2LSV Sheave Bearing
• Brand: VXB
• Double Row Full Complement Cylindrical Roller Sheave Bearing

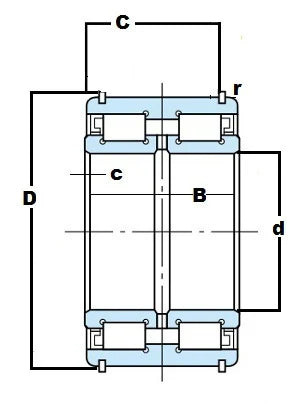

• Dimensions: 65mm x 100mm x 46mm/Metric
• Bearing Inner Diameter: 65mm
• Bearing Outer Diameter: 100mm
• Bearing Width: 46mm
• Size: 65 x 100 x 46 mm
• Snap Ring: WRE 100 (not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 128,000 N
• Static load rating Cor: 224,000 N
• Limiting Speed:
  • Grease Lubrication: 1,500 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
