NNF5009ADA-2LSV Sheave Bearing 2-Row Full Complement Bearing

NNF5009ADA-2LSV Sheave Bearing NNF5009ADA-2LSV is a double row full Complement cylindrical roller bearing. NNF5009ADA-2LSV has the highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NNF5009ADA-2LSV lubricates with a lithium soap-based grease containing an EP additive, NNF5009ADA-2LSV lubricates through lubrication hole & grooves only in inner ring.

• NNF5009ADA-2LSV Sheave Bearing
• Double Row Full Complement Cylindrical Roller Sheave Bearing

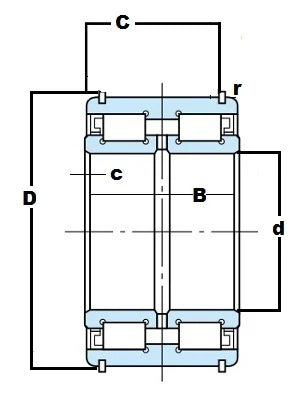

• Dimensions: 45mmx75mmx40mm/Metric
• ID (inner diameter)/Bore: 45mm
• OD (outer diameter): 75mm
• Width: 40mm
• Size: 45 x 75 x 40mm
• Snap Ring: WRE 75(not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 99,500 N
• Static load rating Cor: 158,000 N
• Limiting Speed:
  • Grease Lubrication: 2,000 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
