NKIB59/22 Combined Needle Roller Bearing - 3-Point Contact Ball Bearing 22x39x25mm - Machined Type
NKIB59/22 Combined Needle Roller Bearing - 3-Point Contact Ball Bearing 22x39x25mm - Machined Type
Prix habituel
$43.20 USD
Prix habituel
$48.00 USD
Prix promotionnel
$43.20 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
NKIB 59/22 Needle Roller Bearing |
|
NKIB59/22 is a combined Needle Roller Bearing with 3-Point Contact Ball Bearing 22x39x25 combined bearing type, needle roller bearing with angular contact thrust bearing, inner diameter is 22mm, the outer diameter is 39mm, width of the cone (inner ring) is 25mm.
|

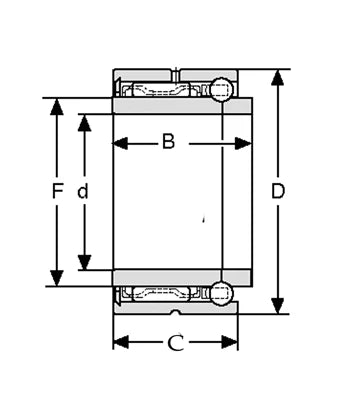

| d | D | B | C | F | r12 min. | da min. | Da max. | ra max | C | C0 |
| 22mm | 39mm | 25mm | 23mm | 28mm | 0.3mm | 24mm | 37mm | 0.3mm | 23.3 KN | 32 KN |
