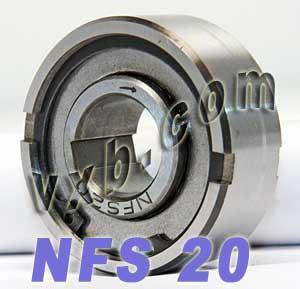

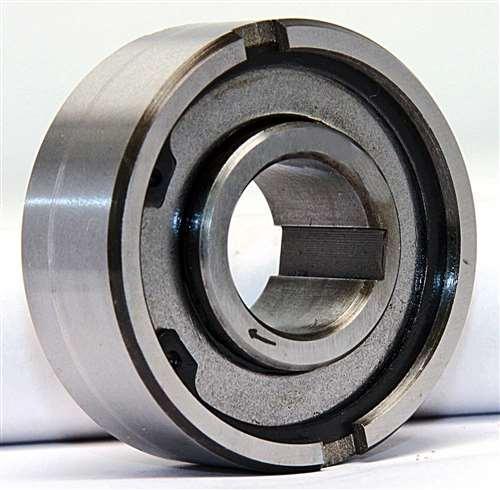

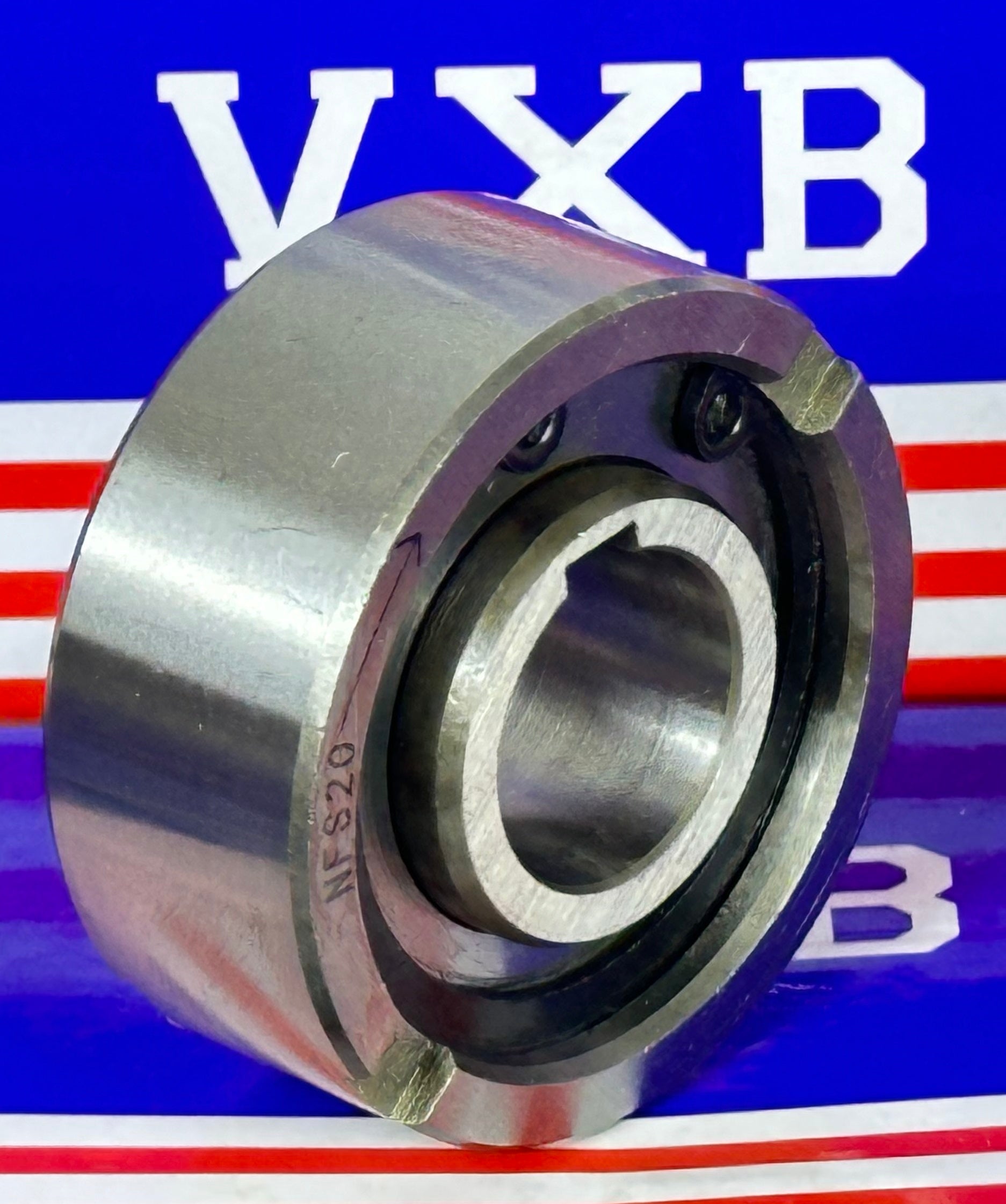

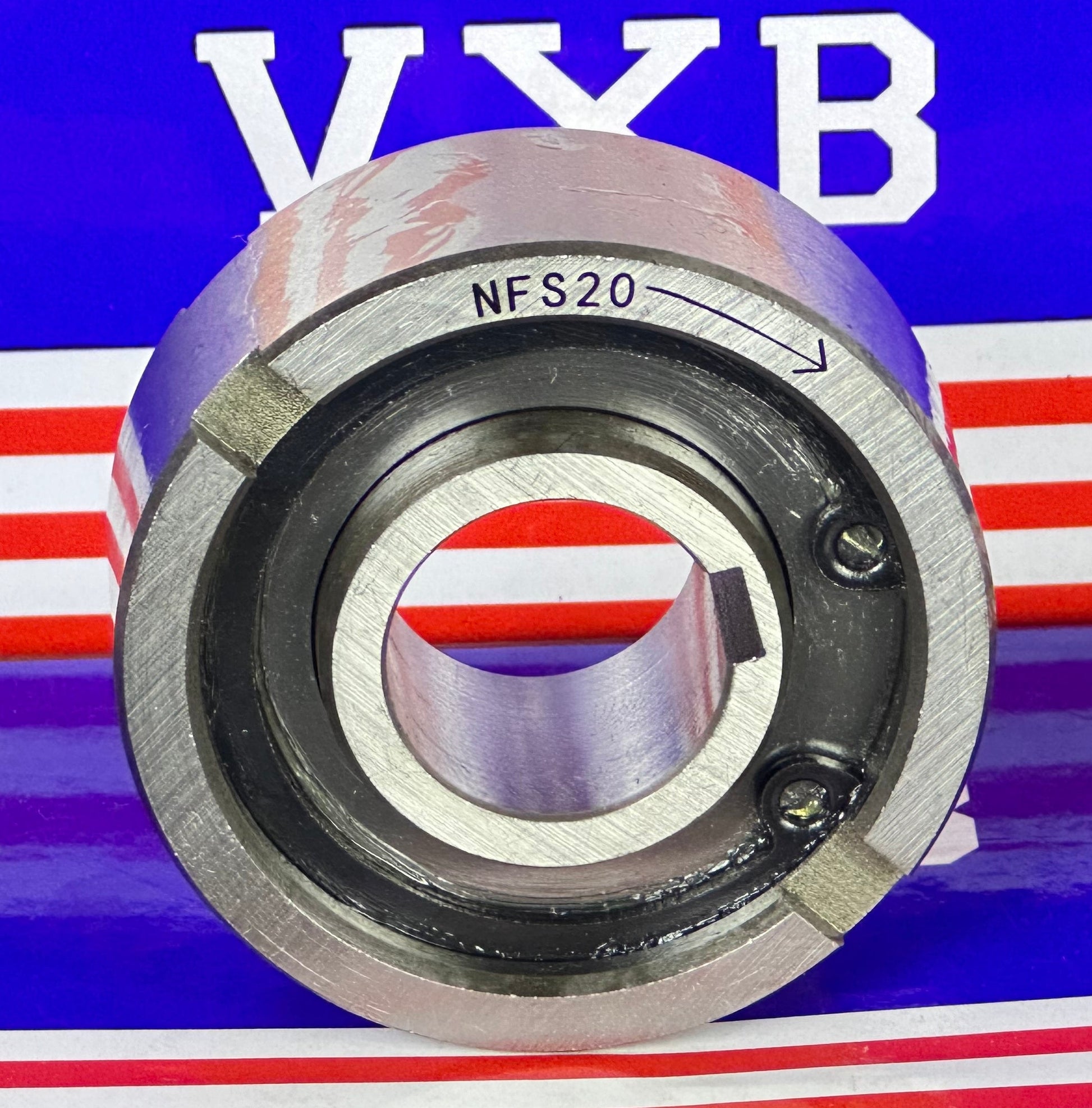

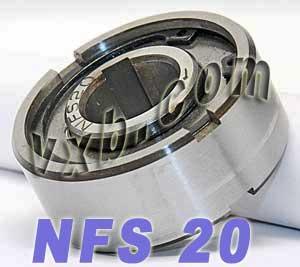

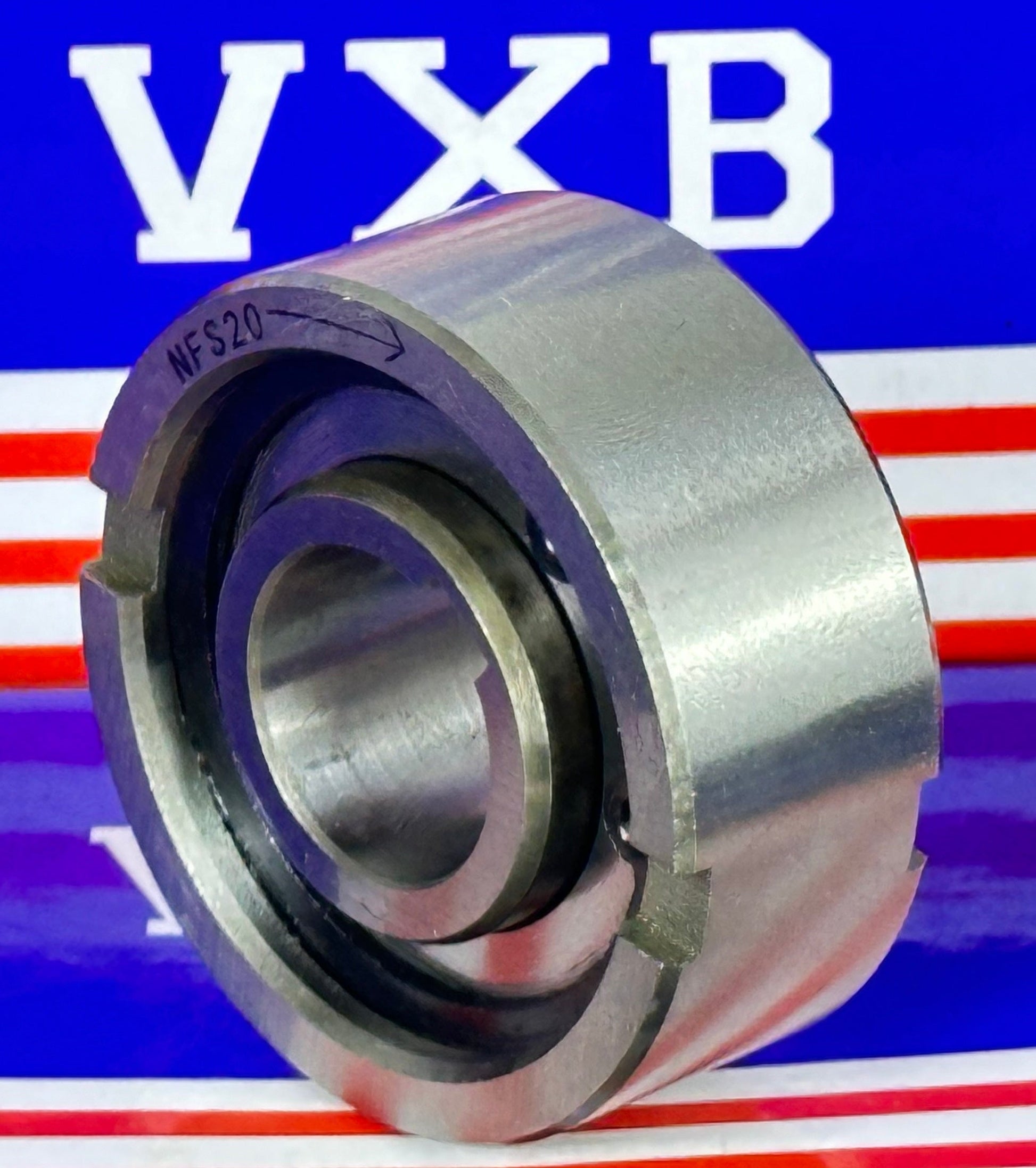

NFS20 One-Way 20x52x21 Bearing Support Required Backstop Clutch

NFS20 is a one-way clutch. One way Sprag/Clutch Freewheel and also called as Backstops. NFS20 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

• NFS20
• One Way Clutch
• Applications: Overrunning, Indexing, Backstopping
• non-bearing supported, External Bearing Support Required

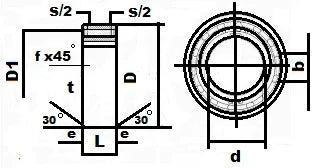

• Dimensions: 20mm x 52mm x 21mm (Metric)
• Inner Diameter: 20mm
• Outer Diameter: 52mm
• Width: 21mm
• Torque: 62 TKN
• Max Torque: 155 TKN
• Inner Race Overrun: 2,100 RPM
• Outer Race Overrun: 3,100 RPM
• Quantity: One Clutch
