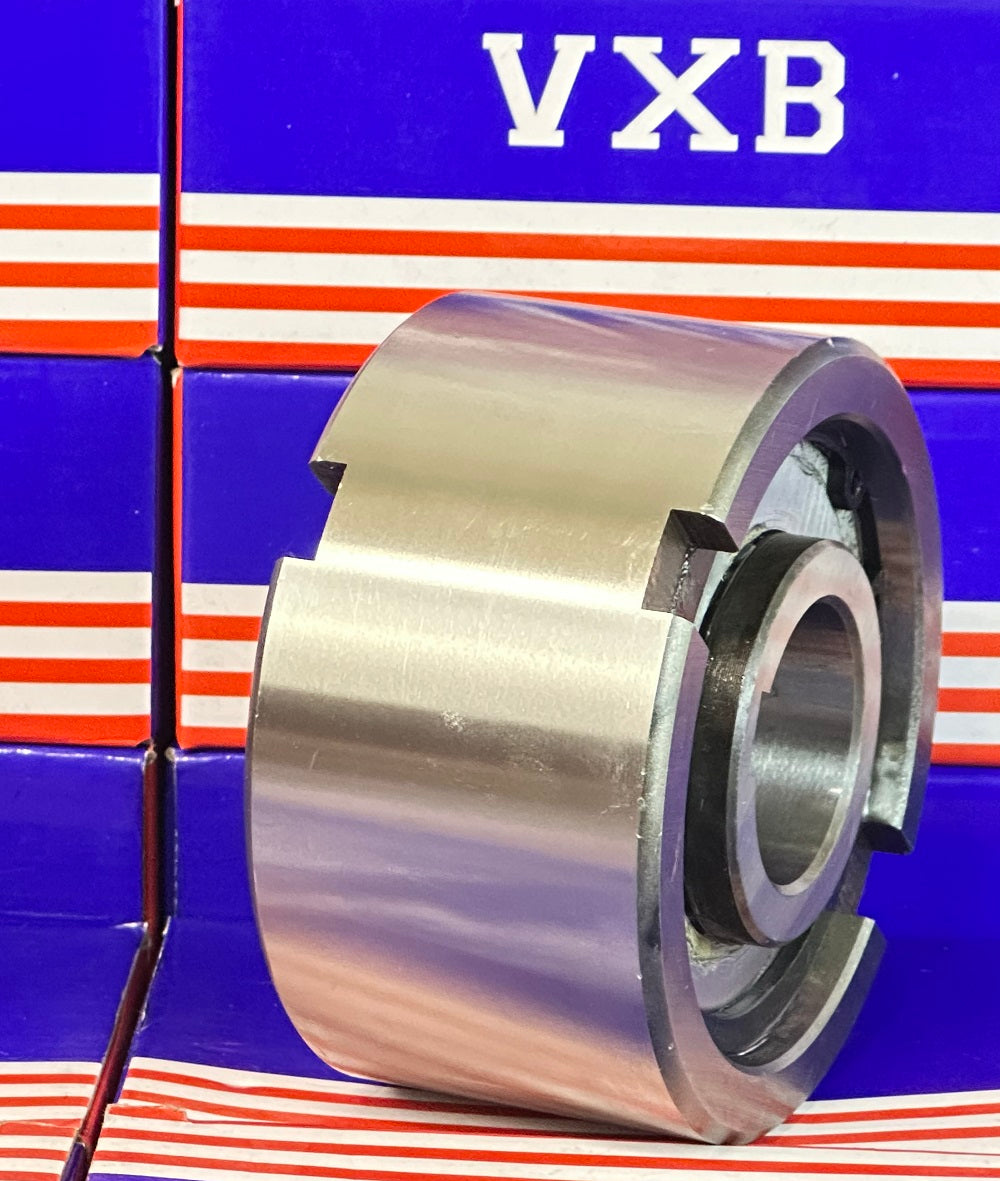

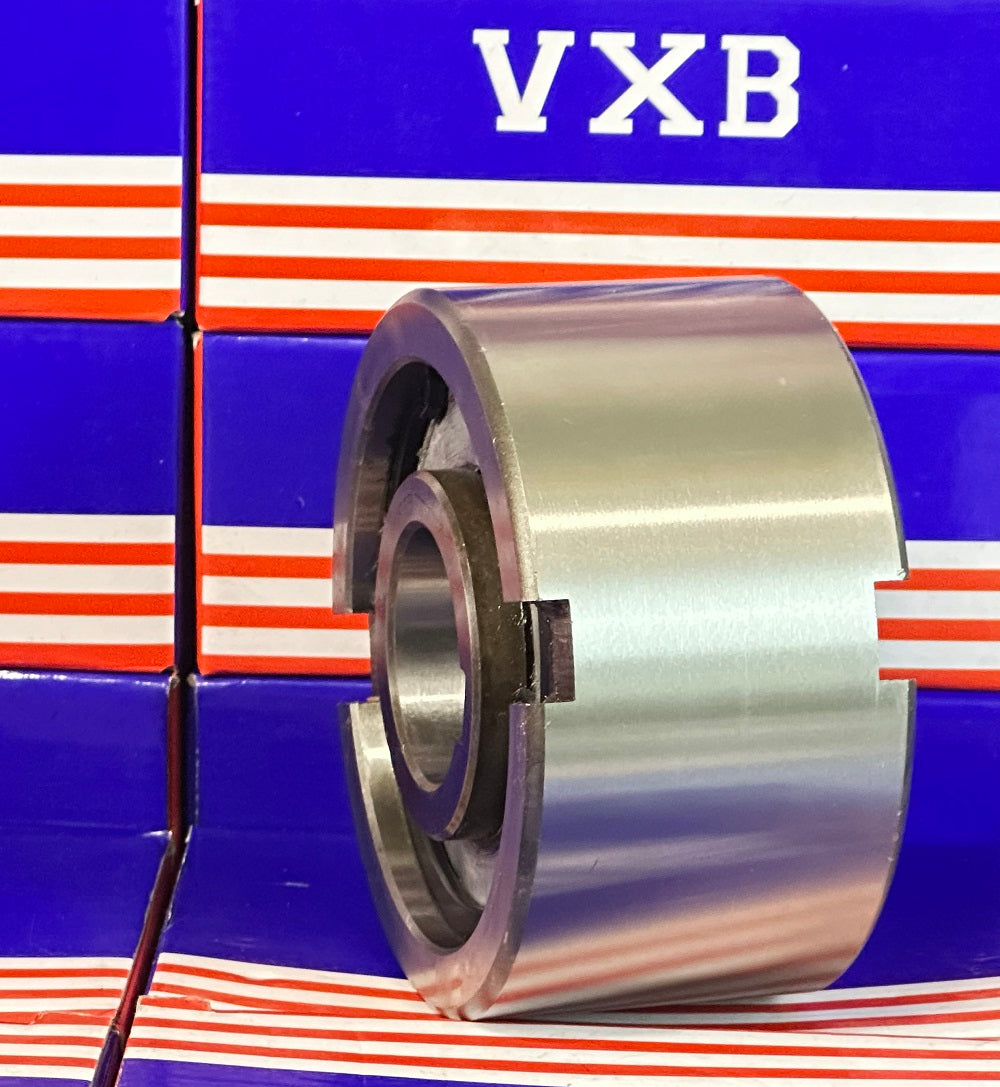

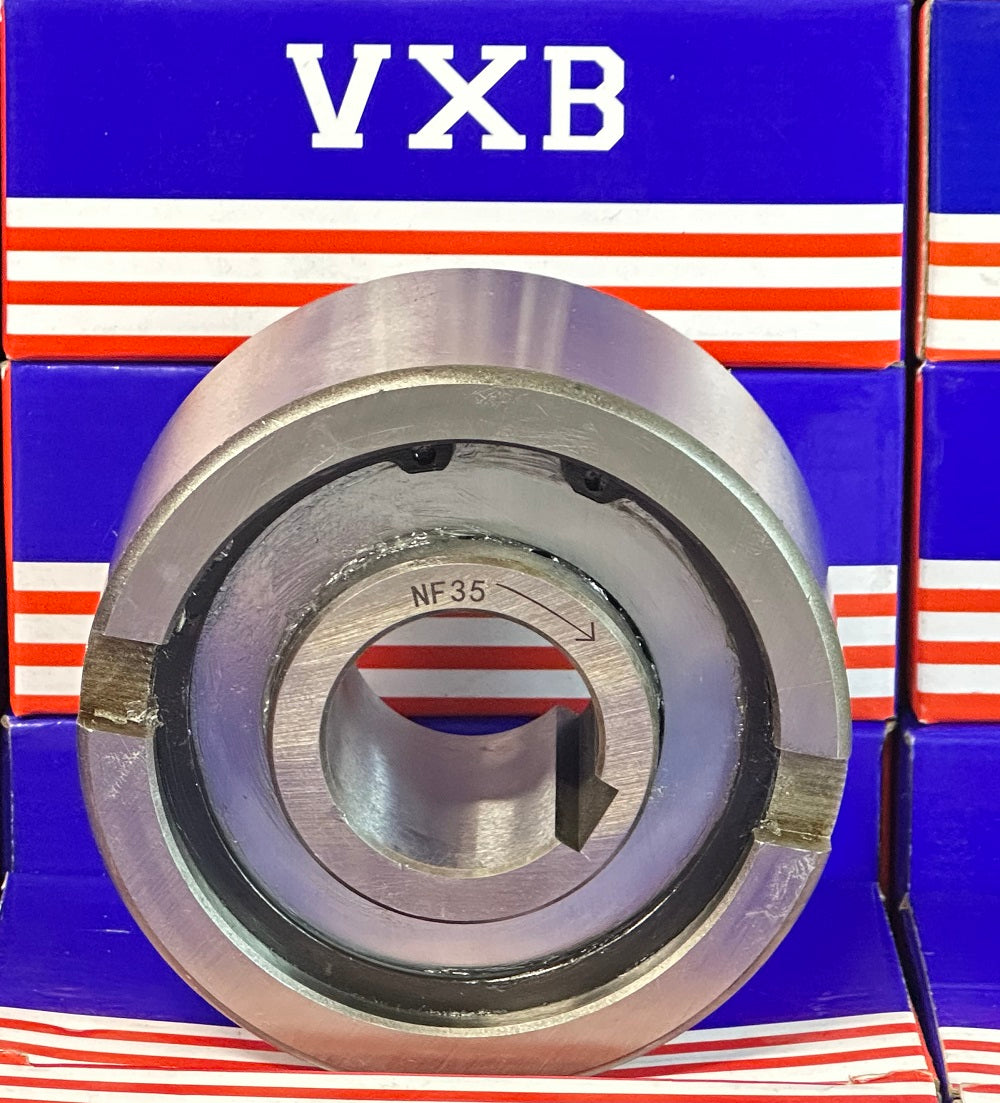

NF35 One Way Clutch
✔️ 35mm x 100mm x 53mm – For Overrunning, Indexing, Backstopping
The NF35 is a robust one-way clutch designed to allow rotation in only one direction - ideal for protecting machines from reverse motion. It’s commonly used in conveyor systems, mining equipment, printing presses, and hydraulic units where gravity or mechanical load must not cause backspin during power loss.
✅ Type: One-way clutch (non-bearing supported)
✅ Rotation Control: For overrunning, indexing, and backstopping
✅ Inner Diameter: 35mm
✅ Outer Diameter: 100mm
✅ Width: 53mm
✅ Requires external bearing support
✅ Applications: Mining, textile, conveyors, hydraulic, and printing systems
✅ Pack Size: 1 clutch unit

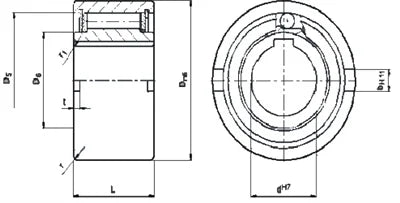

Dimensions Table:
| Spec | Value |
|---|---|
| Bore (dH7) | 35mm |
| Torque (T) | 663 Nm |
| Max Speed – Inner Race (n2) | 1600 RPM |
| Max Speed – Outer Race (n3) | 1950 RPM |
| Outer Diameter (D) | 100mm |
| D5 | 80mm |
| D6 | 58mm |
| Width (L) | 53mm |
| t | 6mm |
| b | 13mm |
| r / r1 | 2.5mm |
💡 Why use a one-way clutch in mechanical systems?
One-way clutches are critical for preventing reverse motion under load. Whether you're lifting materials or driving mechanical cycles, these clutches ensure your system only moves forward - even during a sudden stop or power failure.
Keep your equipment moving forward - literally. Add the NF35 to your build and stop reverse problems before they start!
