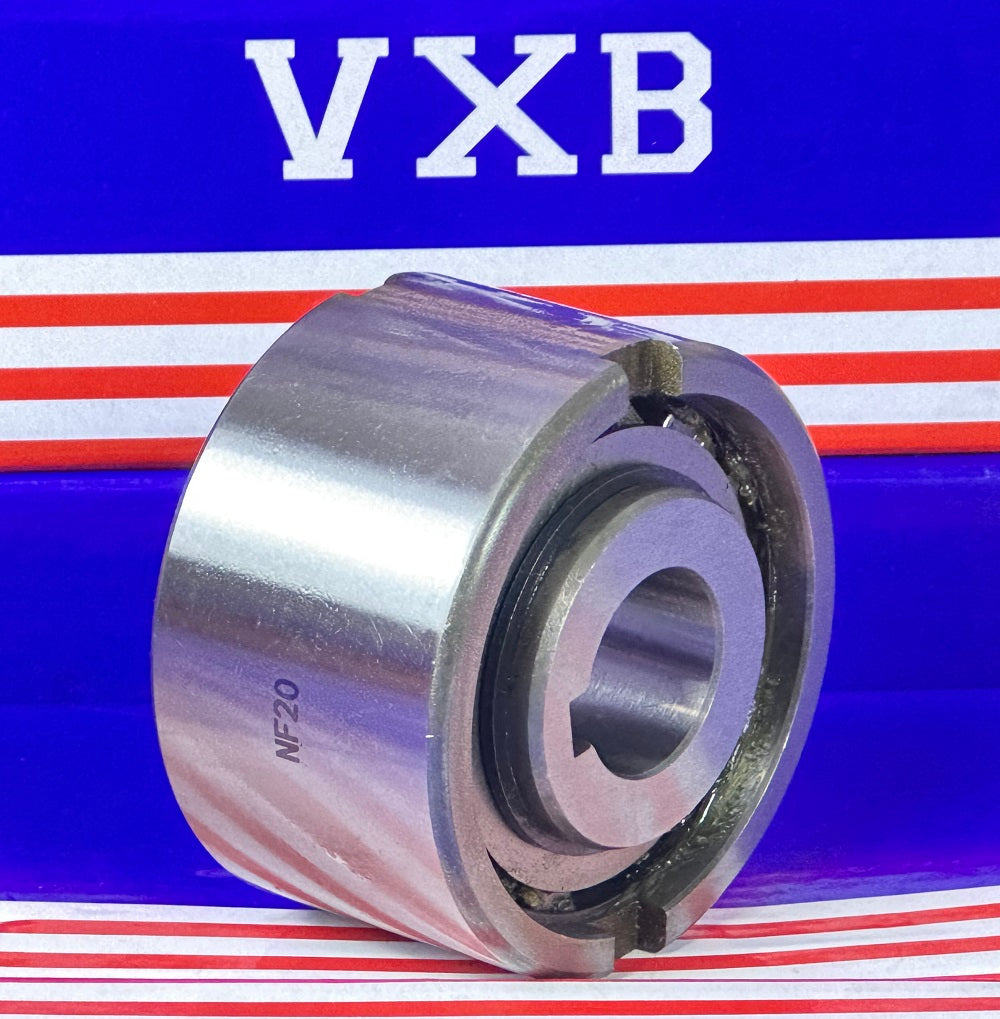

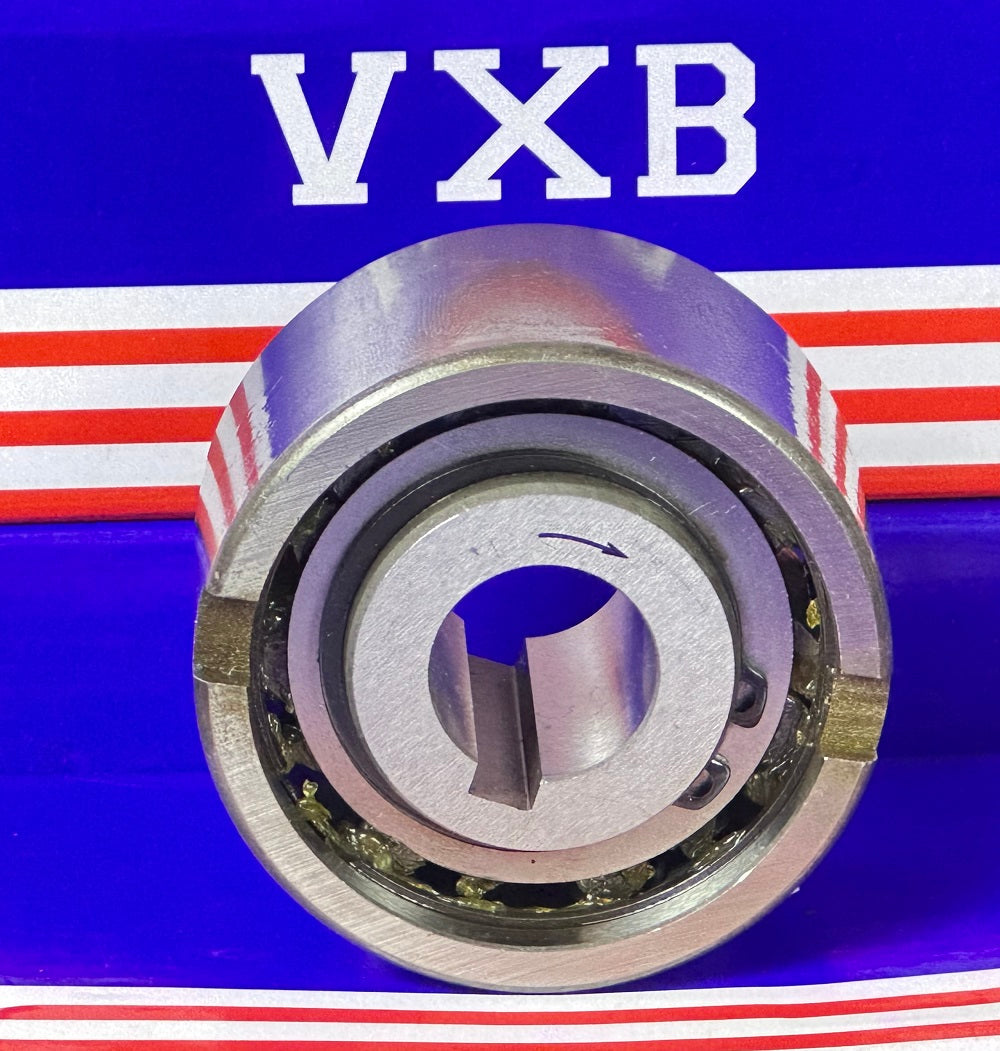

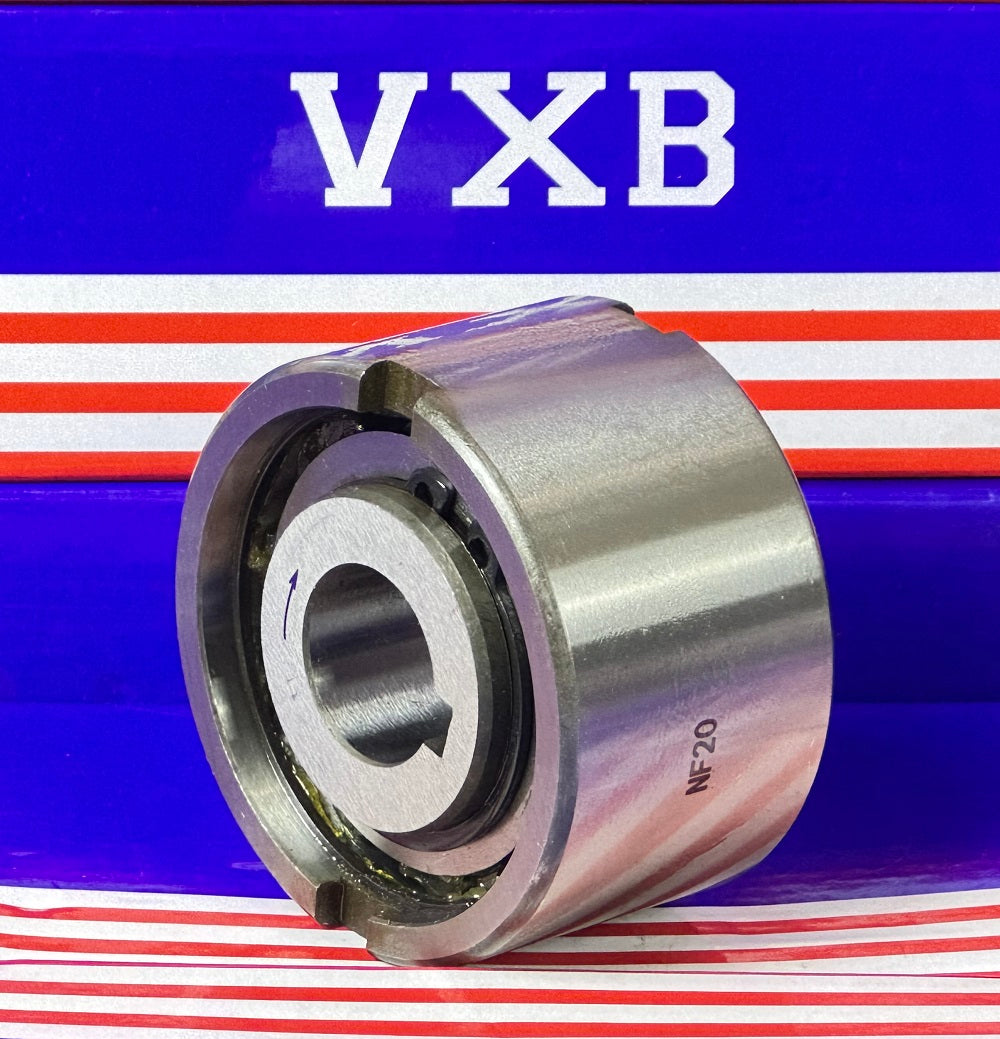

NF20 20mm Freewheel Clutch - One-Way Roller Type - Backstop/Overrunning 20x62x36mm

NF20 20mm Freewheel Clutch - One-Way Roller Type - Backstop/Overrunning 20x62x36mm

Prix habituel $79.99 USD
Prix habituel $88.88 USD Prix promotionnel $79.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

NF20 One Way Clutch
20x62x36




NF20 is a one-way clutch used for overrunning, indexing, and backstopping. NF20 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 20mm x 62mm x 36mm (Metric)
  • Inner Diameter: 20mm
  • Outer Diameter: 62mm
  • Width: 36mm
  • Quantity: One Clutch

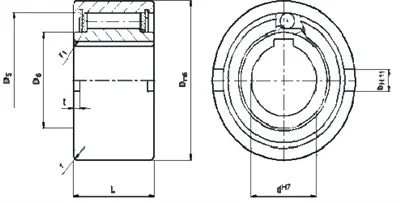

Dimension (mm)
dH7 T 1) n 2) n 3) D n6 D 5 D 6 L t b r r1
20 188 3000 3600 62 52 37 36 3.5 8 2.0 2.0
