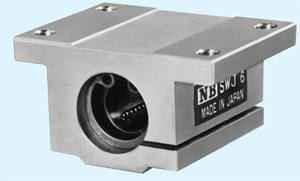

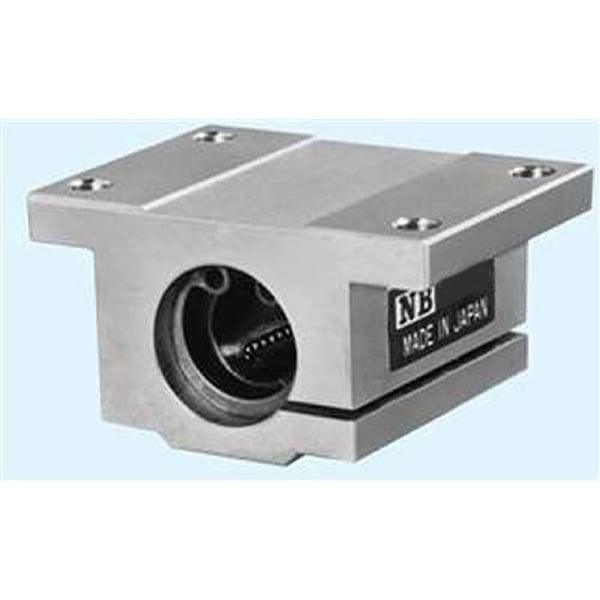

NB TWJ24UU 1-1/2" Ball Bushing Adjustable Block Linear Motion

NB TWJ24UU 1-1/2" Ball Bushing Adjustable Block Linear Motion

$318.60 USD
$354.00 USD $318.60 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

TWJ24UU Type:Slide Unit
Pillow Block
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems



1-1/2" Slide Unit Pillow Block (Inch Series), the innerdiameter(bore) is 1-1/2" inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • TWJ24UU Bearing
  • Linear ball bushing
  • Shaft Diameter: 1 1/2" inch
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1,480 LBF
  • Static load rating Cor: 1,850 LBF

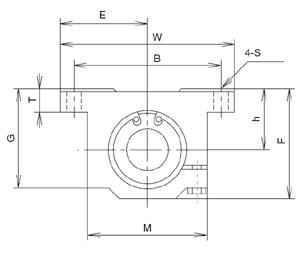

Major dimensions Mounting dimensions
h E W L F T G M B C S
1.75" 2.375" 4.75" 4" 3.25" .5" 2.875" 3.5" 4.125" 2.5" .281"
