NB TWA16UU 1 inch Ball Bushing Block Linear Motion

NB TWA16UU 1 inch Ball Bushing Block Linear Motion

Prix habituel $160.19 USD
Prix habituel $177.99 USD Prix promotionnel $160.19 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

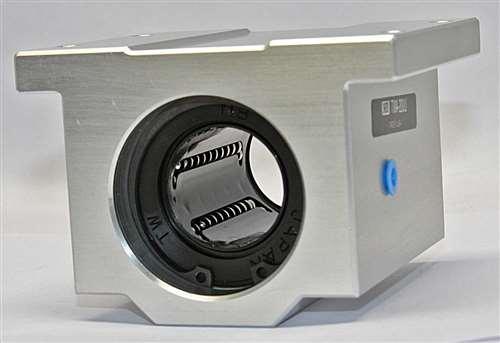

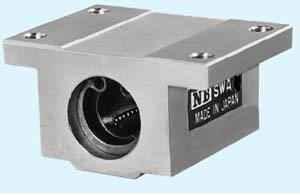

TWA16UU Pillow Block Slide Unit
Nippon Bearing (NB) Linear Systems
Made in Japan


1" Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 1" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • TWA16UU Shaft Support
  • Nippon Bearing Linear Systems
  • Shaft diameter: 1" Inch
  • Dynamic Load Rating: 3781 N
  • Static Load Rating: 4715 N
  • Made in Japan

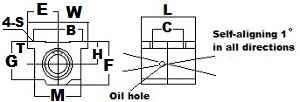

Major Dimensions (inches) Mounting Dimensions
h E W L F T G M B C S
1-3/16" 1-5/6" 3-1/4" 2-13/16" 2-3/16" 5/8" 1-15/16" 2-3/8" 2-7/8" 1-3/4" 7/32"
