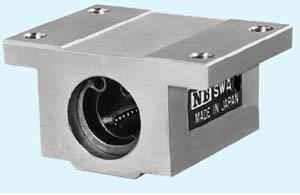

TWA16 NB Pillow Block Slide Unit
Nippon Bearing (NB) Linear Systems
Made in Japan

TWA16 NB 1" Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 1" inch dimensions, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • TWA16 NB Shaft Support
  • Nippon Bearing Linear Systems
  • Shaft diameter: 1" inch
  • Dynamic Load Rating: 3781 N
  • Static Load Rating: 4715 N
  • Made in Japan

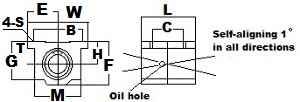

Major Dimensions Mounting Dimensions
h E W L F T G M B C S
1-3/16" 1-5/6" 3-1/4" 2-13/16" 2-3/16" 5/8" 1-15/16" 2-3/8" 2-7/8" 1-3/4" 7/32"
