NB TWA12UU 3/4 inch Ball Bushing Block Linear Motion
NB TWA12UU 3/4 inch Ball Bushing Block Linear Motion
Impossible de charger la disponibilité du service de retrait

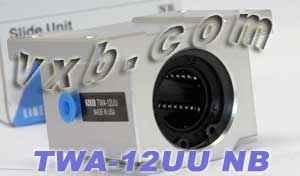

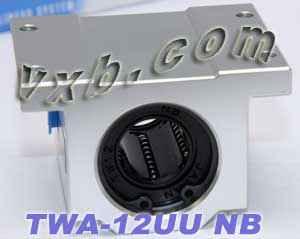

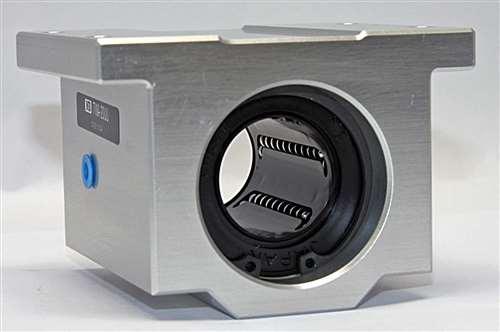

TWA12UU Pillow Block Slide Unit
💡 NB Nippon Bearing Linear Systems - Made in Japan
💡 3/4" Inch Shaft - High Accuracy Linear Bushing
The TWA12UU is a precision-engineered pillow block slide unit designed for smooth linear motion. Featuring a 3/4" bore and steel retainer, this NB (Nippon Bearing) unit is built for demanding applications requiring consistent and accurate travel. Made in Japan, it’s commonly used in American industrial setups.
✅ Brand: NB (Nippon Bearing)
✅ Country of Origin: Japan
✅ Type: Pillow Block Linear Slide Unit
✅ Shaft Diameter: 3/4" Inch
✅ Retainer Type: Steel
✅ Dynamic Load Rating: 2,091 N
✅ Static Load Rating: 2,624 N

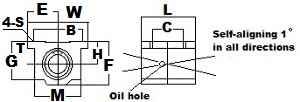

📏 Major Dimensions (Inches):
✅ Height (h): 15/16"
✅ Width (W): 2-3/4"
✅ Length (L): 2-1/16"
✅ E: 1-3/8"
✅ F: 1-3/4"
✅ T: 5/16"
✅ G: 1-9/16"
✅ M: 1-7/8"
✅ B: 2-3/8"
✅ C: 1-1/4"
✅ S: 3/16"
💡 What Is a Pillow Block Slide Unit Used For?
Pillow block slide units are essential in linear motion systems, providing a stable housing for linear bearings. They're commonly used in CNC machines, automation systems, and robotics where precise shaft alignment and motion are critical.
