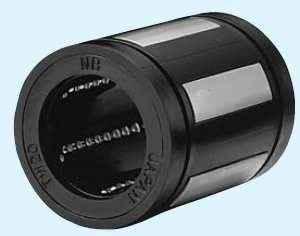

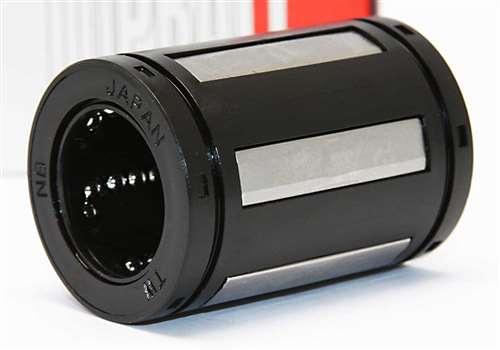

NB TW32UU 2 inch Self Aligning Ball Bushings Linear Motion

TW32UU 2" Bore High Load Standard type TopBall inch type linear motion ball bushings/bearings, inner diameter(bore)= 2" (2.000") inch dimensions with built-in seals, the Topball slide bush is a high performance bushing with three times the load capacity, capable of providing up to 27 times normal travel life of a conventional slide bushing. high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

• Ball circuit: 6
• Dynamic load rating: 2,430 LBF
• Static load rating: 3,040 LBF

1. Increased Load Capacity


2. Longer Travel Life


3. Self Aligning Capability


4. Floating Integral Wiper Seal


5. Clearance Adjustable


6. Cost Effectiveness
