NB SWSK20G 1-1/4" Bushings Resin cage Square Flange Linear Motion

NB SWSK20G 1-1/4" Bushings Resin cage Square Flange Linear Motion

$350.99 USD
$389.99 USD $350.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

SWSK20G:Made in Japan:NB Linear Systems
Square Flange Type
Nippon Bearing Linear Systems



SWSK20G 1 1/4" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 1 1/4" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SWSK20G Ball Bearing
  • NB Linear System
  • Number of Ball Circuits: 6
  • Shaft Diameter: 1 1/4" inch
  • Dynamic load rating Cr:
  • Static load rating Cor:
  • Retainer Material: Resin
  • Quantity: 1 Bearing

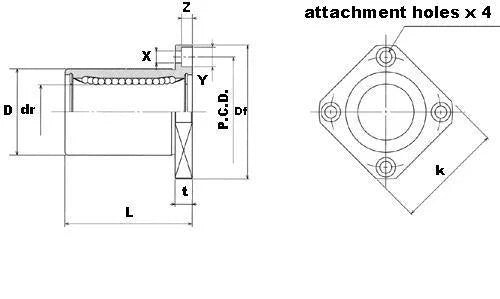

Dimensions (Inches)
dr D L Df K t P.C.D. X Y Z
1-1/4" 2" 2-5/8" 3-1/8" 2-1/2" 3/8" 2-9/16" 9/32" 13/32" 17/64"
