NB SWK12G 3/4 inch Bushings Resin cage Square Flange Linear Motion

NB SWK12G 3/4 inch Bushings Resin cage Square Flange Linear Motion

$66.59 USD
$73.99 USD $66.59 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
SWK12G:Made in Japan:NB Linear Systems
Square Flange Type
Nippon Bearing Linear Systems

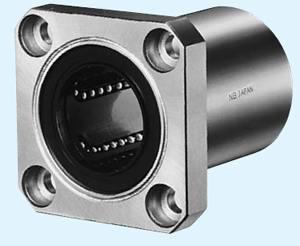

SWK12G 3/4" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 3/4" inch dimensions with resin retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SWK12G Bearing
  • NB Linear Systems ball bushing
  • Shaft Diameter: 3/4" Inch
  • Dynamic load rating Cr: 862 N
  • Static load rating Cor: 1370 N
  • Number of Ball Circuits: 5
  • Quantity: 1 Bearing

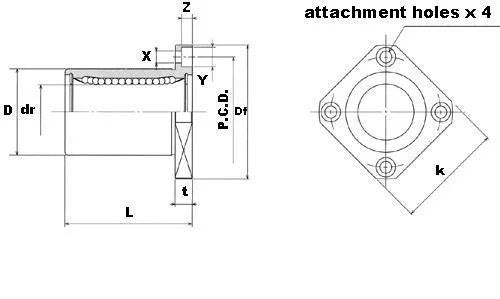

Dimensions (Inches)
dr D L Df t P.C.D. X Y Z
0.75 1.25 1.625 2.188 0.313 1.718 0.219 0.344 0.203
