NB SW8UU 1/2" Seals Ball Bushings Linear Motion

NB SW8UU 1/2" Seals Ball Bushings Linear Motion

$48.59 USD
$53.99 USD $48.59 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
SW8UU Seals on both sides
NB Nippon Bearing Linear Systems
Made in Japan

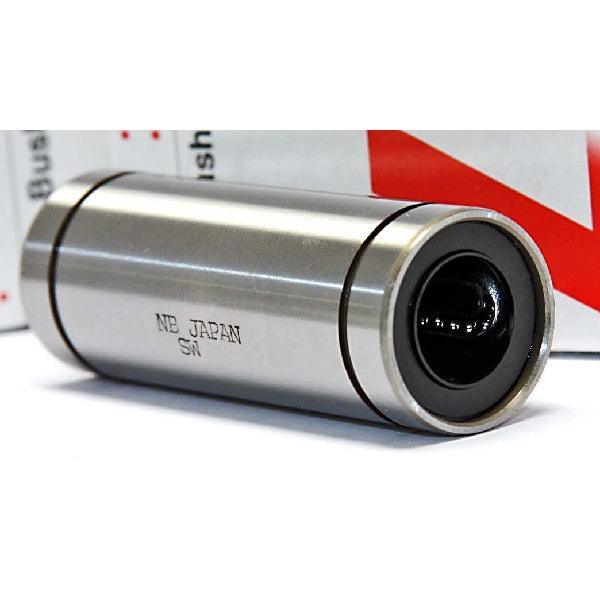

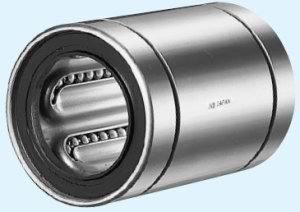

SW8UU 1/2" Bore linear motion ball bushing/bearing, SW8UU is Seals on both sides, the innerdiameter(bore) is 1/2" inch dimensions with steelretainer, bearing is high accuracy grade linear bushing, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SW8UU NB Ball Bearing
  • Nippon Bearing Linear System
  • Number of ball circuits: 4
  • Size: 1/2" x 7/8" x 1 1/4" inch
  • Inner Diameter: 1/2" inch
  • Outer Diameter: 7/8" inch
  • Length: 1 1/4" inch
  • Basic Dynamic Load Rating: 510 N
  • Basic Static Load Rating: 784 N


Dimensions (inches) Eccentricity Radial Clearance
Inch
dr D L B W D1
inch tolerance
inch		 inch tolerance
inch		 inch tolerance
inch		 inch tolerance
inch		 precision
inch		 high
inch
1/2" 0-.00025 0-.0004 7/8" 0-.0005 1-1/4" 0-.008 0.9625 0-.008 0.0459 0.8209 0.0003 0.0005 0.0001
