NB SW6UU 3/8" Seals Ball Bushings Linear Motion NB Systems
NB SW6UU 3/8" Seals Ball Bushings Linear Motion NB Systems
Prix habituel
$44.99 USD
Prix habituel
$49.99 USD
Prix promotionnel
$44.99 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| SW6UU Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |

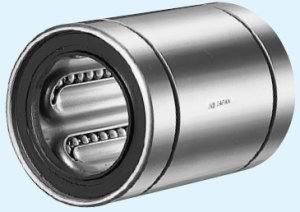

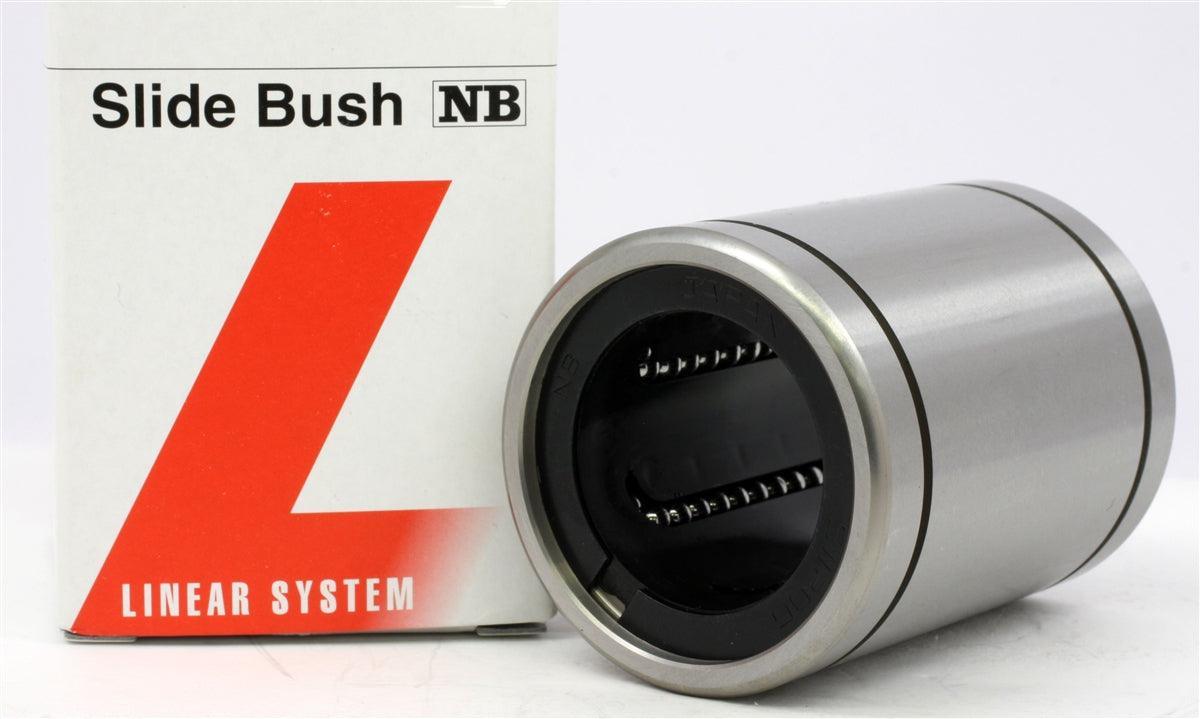

SW6UU 3/8" Bore linear motion ball bushings/bearings, SW6UU is Seals on both sides, inner diameter(bore)= 3/8" inch dimensions with steel retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
|
|
|
(inch) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

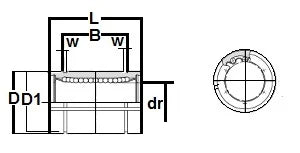

| dr | D | L | B | W | D1 | Precision (inch) |
High (inch) |
||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||||
| Precision | High | ||||||||||||
| 3/8" | 0-.00025 | 0-.0004 | 5/8" | 0-.0005 | 7/8" | 0-.008 | 41/64" | 0-.008 | 0.039 | 0.588 | .0003-8 | .0005-12 | .0001-3 |
