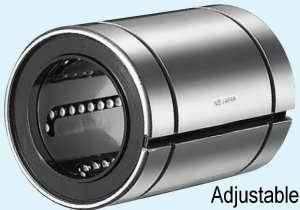

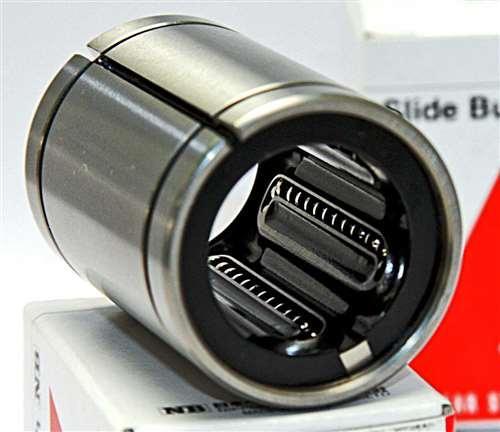

NB SW40AJ 2-1/2" Adjustable Ball Bushings Linear Motion
NB SW40AJ 2-1/2" Adjustable Ball Bushings Linear Motion
Prix habituel
$428.39 USD
Prix habituel
$475.99 USD
Prix promotionnel
$428.39 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| SW40AJ:Clearance Adjustable Type Ball Bushing Made in Japan:NB Linear Systems |
|
SW40AJ Clearance Adjustable Type Linear Motion Ball Bushing,2 1/2" Bore inch type linear motion ball bushings/bearings, igh accuracy grade linear bushings, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

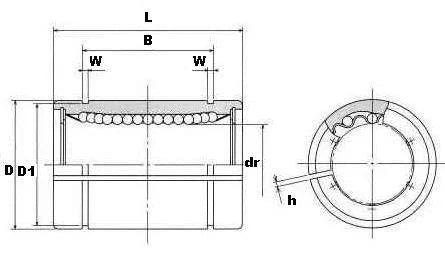

| Major dimensions and tolerance (inches) | Eccentricity (inch) |
Radial clearance (inch) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | ||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | |||||
| 2 1/2" | 0-.0006 | 3-3/4" | 0-.0009 | 5" | 0-.012 | 3.976" | 0-.012 | 0.12" | 3.552" | 0.12" | .001" | -.0005" |
