NB SW24UU 1-1/2" Seals Ball Bushings Linear Motion

NB SW24UU 1-1/2" Seals Ball Bushings Linear Motion

$149.39 USD
$165.99 USD $149.39 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
SW24UU Seals on both sides
NB Nippon Bearing Linear Systems
Made in Japan

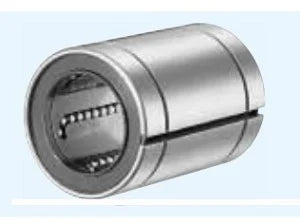

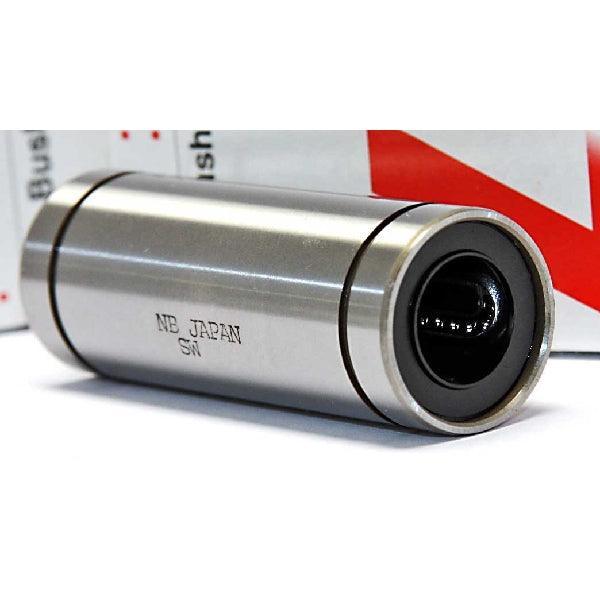

SW24UU 1 1/2" Bore linear motion ball bushings/bearings, SW24UU is Seals on both sides, innerdiameter(bore) is 1 1/2" inch dimensions with steelretainer, Bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SW24UU Linear Motion Ball Bushings
  • NB Systems Ball Bushings Linear Motion
  • Number of ball circuits: 6
  • Size: 1 1/2" x 2 3/8" x 3" inch
  • Inner Diameter: 1 1/2" inch
  • Outer Diameter: 2 3/8" inch
  • Length: 3" inch
  • Quantity: 1 Bearing
  • Dynamic load rating: 3,820 N
  • Static load rating: 7,940 N

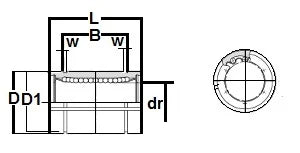

Major dimensions and tolerance (inch)
Eccentricity
Radial clearance
(inch)
dr D L B W D1 Precision
(inch)		 High
(inch)
inch tolerance inch tolerance inch tolerance inch tolerance
Precision High
1-1/2" 0-.00035 0-.0005 2 3/8" 0-.00075 3" 0-.012 2.41 0-.012 55/64" 2-15/64" .0005-12 .0008-20 .0003-8
