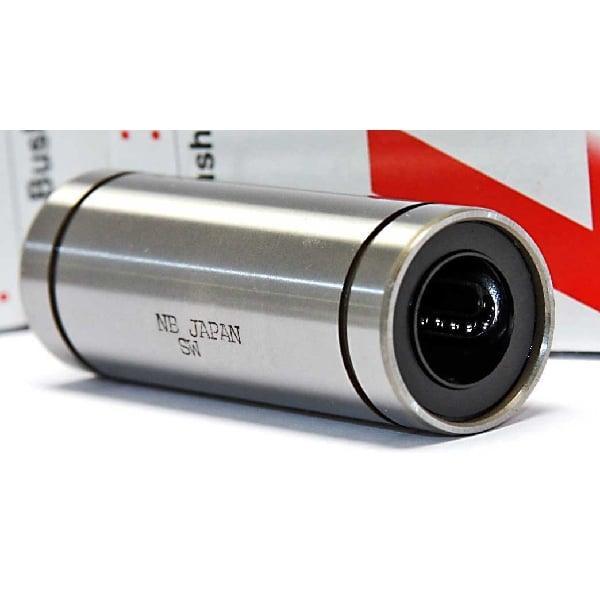

NB SW20UU 1-1/4" Seals Ball Bushings Linear Motion
NB SW20UU 1-1/4" Seals Ball Bushings Linear Motion
Prix habituel
$112.49 USD
Prix habituel
$124.99 USD
Prix promotionnel
$112.49 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| SW20UU Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |
SW20UU 1 1/4" Bore linear motion ball bushings/bearings, SW20UU is Seals on both sides, SW20UU inner diameter(bore) is 1 1/4" inch dimensions with steel retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan. Since linear motion is obtained using a simple mechanism, the slide bush can be used in a wide variety of applications, including transportation equipment, food processing equipment, and semiconductor equipment. The NB slide bush uses a round shaft for the guide, resulting in effective space utilization, which allows for compact designs. The raceway surface is precision ground. Since the contact surface between the ball elements and the raceway surface is minimized, the NB slide bush provides low friction when compared to other linear motion mechanisms.
|
|
|
|
(inch) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

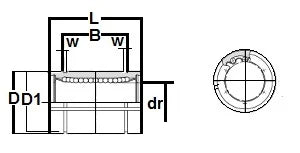

| dr | D | L | B | W | D1 | Precision (inch) |
High (inch) |
||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||||
| Precision | High | ||||||||||||
| 1-1/4" | 0-.00035 | 0-.0005 | 2" | 0-.00075 | 2-5/8" | 0-.012 | 2" | 0-.012 | 0.068 | 1.89 | .0005-12 | .0008-20 | .0003-8 |
