NB SW20-OP 1-1/4" Ball Bushings Linear Motion

NB SW20-OP 1-1/4" Ball Bushings Linear Motion

Prix habituel $175.49 USD
Prix habituel $194.99 USD Prix promotionnel $175.49 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
SW20-OP:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

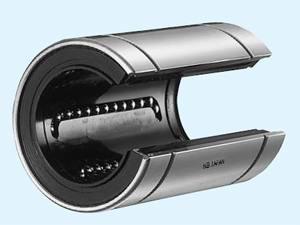

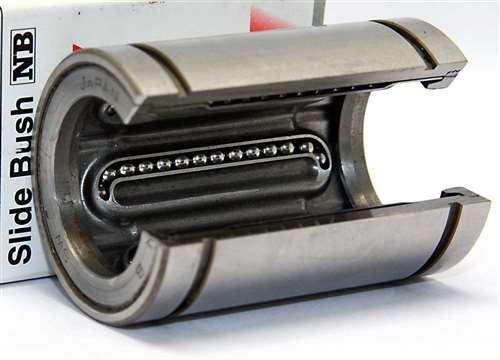

SW20-OP Bore linear motion ball bushings/bearings, the inner diameter(bore) is 1 1/4" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SW20-OP Bearing
  • NB Linear Systems Ball Bushing
  • Shaft Diameter: 1 1/4" Inch
  • Dynamic load rating Cr: 1570 N
  • Static load rating Cor: 2740 N
  • Number of Ball Circuits: 5
  • Quantity: 1 Bearing

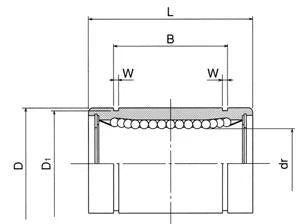

Dimensions (Inches)
L B W D D1 dr
2.625 2.01 0.07 2 1.89 1.25
