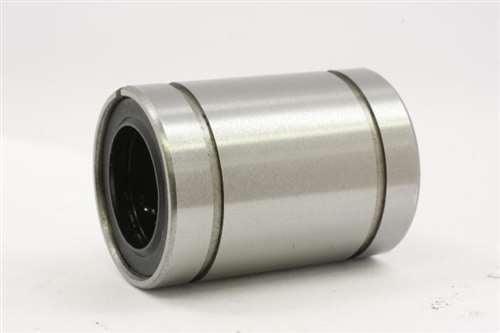

NB SW20 1-1/4" Ball Bushings Linear Motion

NB SW20 1-1/4" Ball Bushings Linear Motion

$107.99 USD
$119.99 USD $107.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
SW20:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems
SW20 1 1/4" Bore linear motion ball bushings/bearings, SW20 inner diameter(bore) is 1 1/4" inch dimensions with steel retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan. The NB slide bush uses a round shaft for the guide, resulting in effective space utilization, which allows for compact designs. The raceway surface is precision ground. Since the contact surface between the ball elements and the raceway surface is minimized, the NB slide bush provides low friction when compared to other linear motion mechanisms.
  • SW20 Linear Motion Ball Bushings
  • NB Systems Ball Bushings Linear Motion
  • Number of ball circuits: 6
  • Size: 1 1/4" x 2" x 2 5/8" inch
  • Outer Diameter: 2" inch
  • Length: 2 5/8" inch
  • Quantity: 1 Bearing
  • Dynamic load rating: 1,570 N
  • Static load rating: 2,740 N

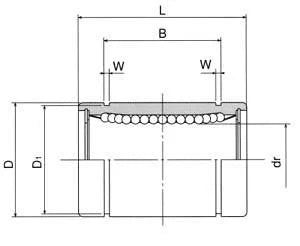

Major dimensions and tolerance (inch)
Eccentricity
Radial clearance
(inch)
dr D L B W D1 Precision
(inch)		 High
(inch)
inch tolerance inch tolerance inch tolerance inch tolerance
Precision High
1-1/4" 0-.00035 0-.0005 2" 0-.00075 2-5/8" 0-.012 2" 0-.012 0.068 1.89 .0005-12 .0008-20 .0003-8
