NB SW12UU 3/4 inch Seals Ball Bushings Linear Motion
NB SW12UU 3/4 inch Seals Ball Bushings Linear Motion
Prix habituel
$55.79 USD
Prix habituel
$61.99 USD
Prix promotionnel
$55.79 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| SW12UU Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |

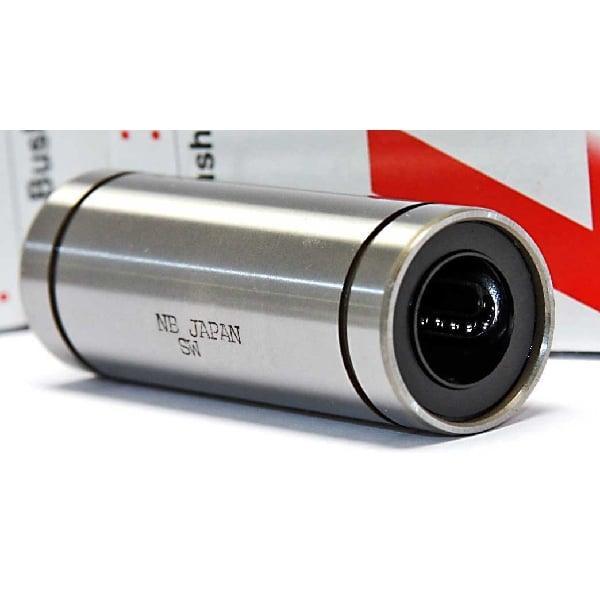

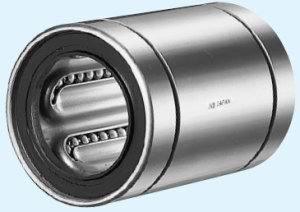

SW12UU 3/4" Bore linear motion ball bushings/bearings, SW12UU is Seals on both sides, inner diameter(bore)= 3/4" inch dimensions with steel retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
|
|
|
(inch) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

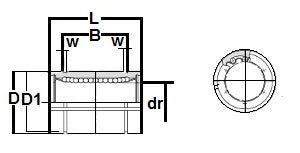

| dr | D | L | B | W | D1 | Precision (inch) |
High (inch) |
||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||||
| Precision | High | ||||||||||||
| 3/4" | 0-.0003 | 0-.0004 | 1 1/4" | 0-.00065 | 1-5/8" | 0-.008 | 1-166" | 0-.008 | 1/16" | 1-5/64" | .0004-10 | .0006-15 | .0002-6 |
