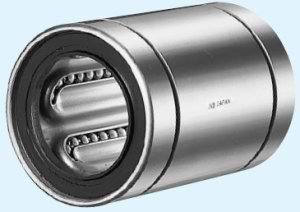

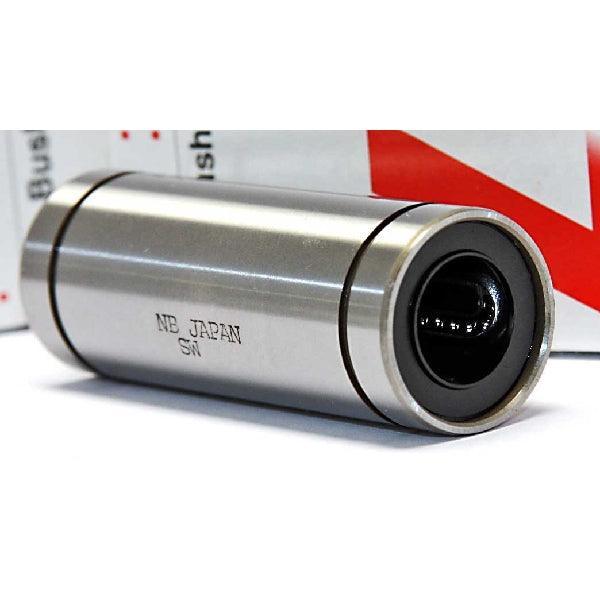

NB SW10UU 5/8 inch Seals Ball Bushings Linear Motion
NB SW10UU 5/8 inch Seals Ball Bushings Linear Motion
Prix habituel
$49.49 USD
Prix habituel
$54.99 USD
Prix promotionnel
$49.49 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| SW10UU Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |
SW10UU 5/8" Bore linear motion ball bushing/bearing, SW10UU is Seals on both sides, the innerdiameter(bore) is 5/8" inch dimensions with steelretainer, bearing is high accuracy grade linear bushing,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

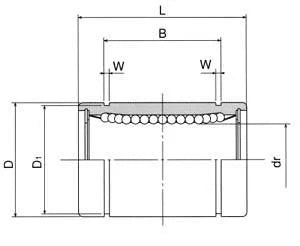

| Dimensions (inches) | Eccentricity | Radial Clearance | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||||||
| inch | tolerance inch |
inch | tolerance inch |
inch | tolerance inch |
inch | tolerance inch |
precision inch |
high inch |
||||
| 5/8" | 0-.00025 | 0-.0004 | 1-1/8" | 0-.0005 | 1-1/2" | 0-.008 | 1.1039" | 0-.008 | 0.0559" | 1.059" | 0.0003 | 0.0005 | 0.0001 |
